CS-3300 – одиночный тип детектора

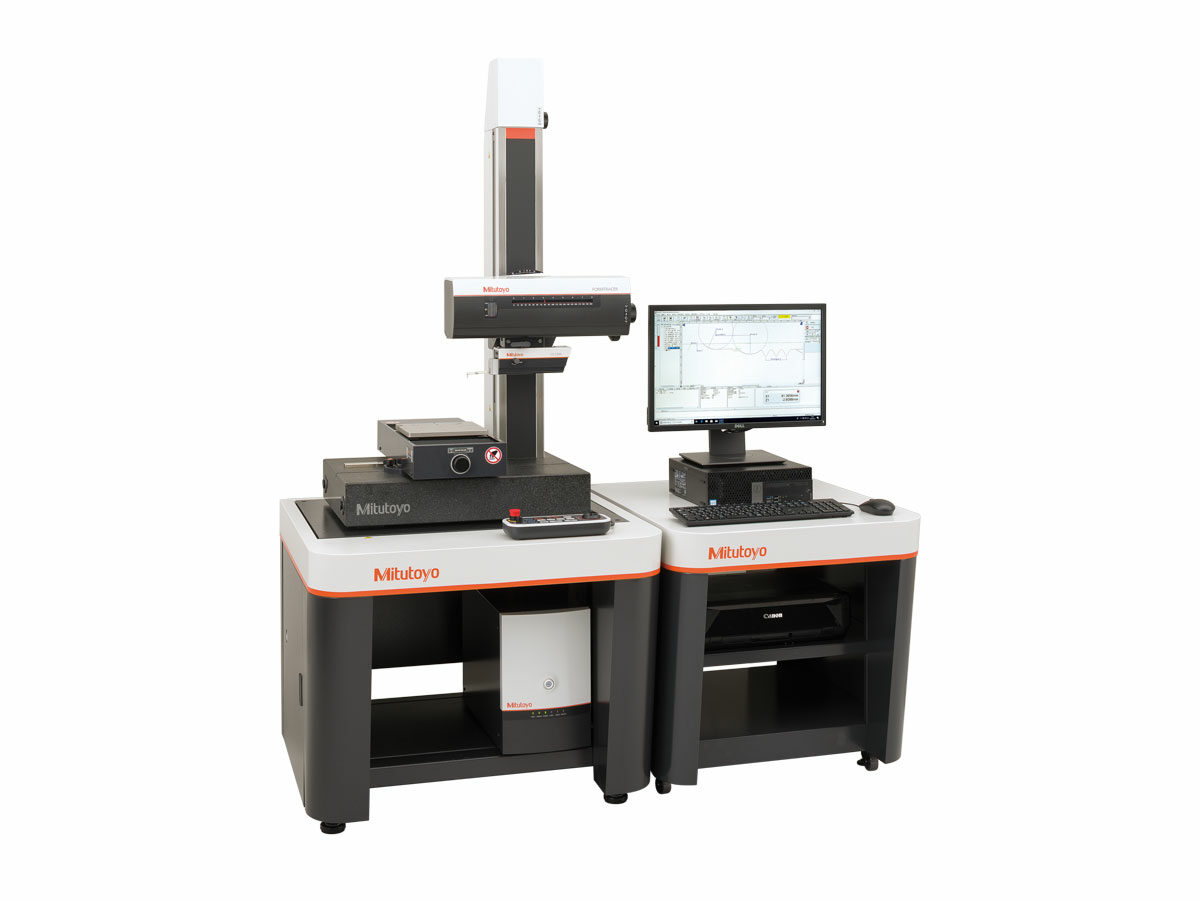

The Mitutoyo Formtracer CS-3300 contour form roughness measuring system provides fast, highly accurate measurements for both applications in a single unit. Its wide measuring range, high-resolution detector and simplified operation enhances the Formtracer CS-3300″s measurement efficiency and operability. This unit is able to measure inclined surfaces quickly by inclining the orientation of the drive unit by ±45°. And by incorporating an ABS scale in the Z2-axis, this unit eliminates the need for origin point re-setting conventionally required for every step of repeated measurements, over step or multiple sections.

• The detector unit is able to shift to the left by 2.76” (70mm) extending the unit to avoid drive unit and workpiece interference
• Internally housed detector and drive unit cables eliminate any risk of abrasion and guarantee trouble-free, high-speed operation
• Fine-feed handles and inclined X-axis drive unit measures small holes and inclined planes more efficiently
• Highly rigid ceramic guides maintain traverse linearity for longer periods of time surface quickly and is abrasion resistant
• Dramatically increased drive speed reduces total measurement time
