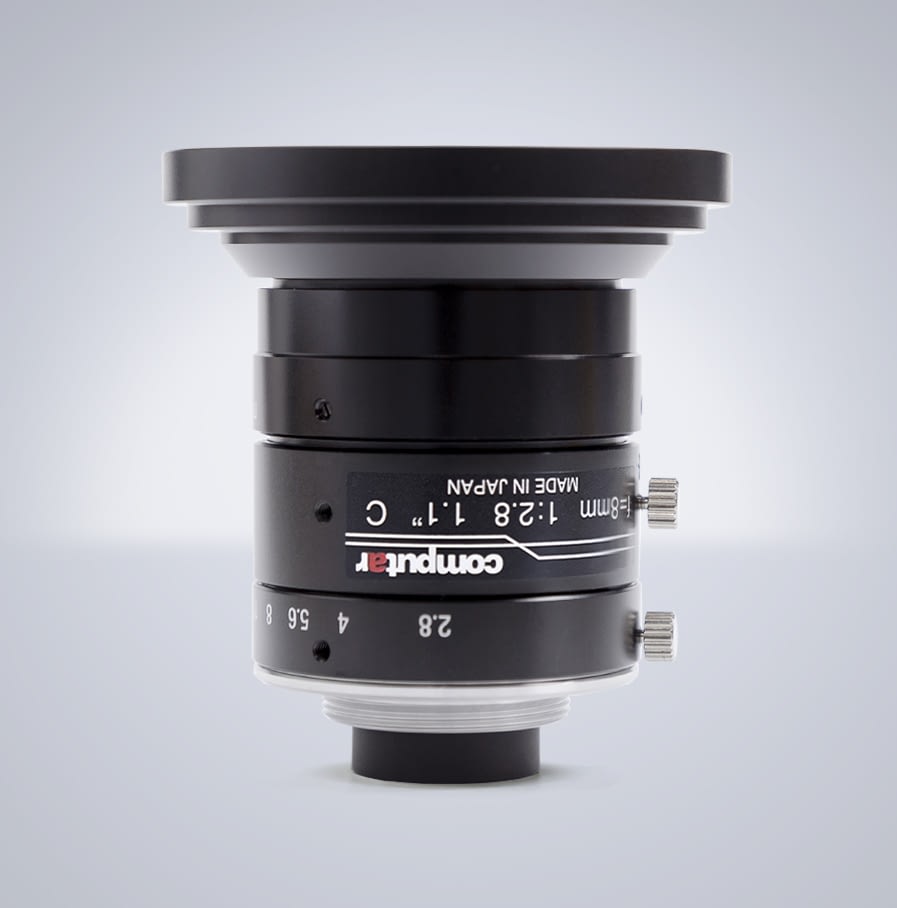

| Manufacturer Model # | Computar V0828-MPY2 |
|---|---|
| LUCID SKU | CC080-12M-2 |
| Focal Length | 8mm |
| Iris Range (f no.) | f2.8 f16 |
| Angle of View (H x V) * * Mounted to 1.1” sensor cameras | 83° x 66° |
| Focus Range (from front of the lens) | ∞-200mm |
| Operation of Focus | Manual |
| Operation of Iris | Manual |
| Filter Thread | Separate filter holder required: #VM0811 (for 1.1), #VM0810 (for 1) |
|---|---|
| Mount | C-Mount |
| Sensor Size (max.) | 1.1” |
| TV Distortion | -2.88% (2/3), -1.7% (1), -0.6% (1.1) |
| Diameter | φ57.5 x 53.2mm |
| Weight | 157.4g |
| Locking Screws Bundled | 2 |
