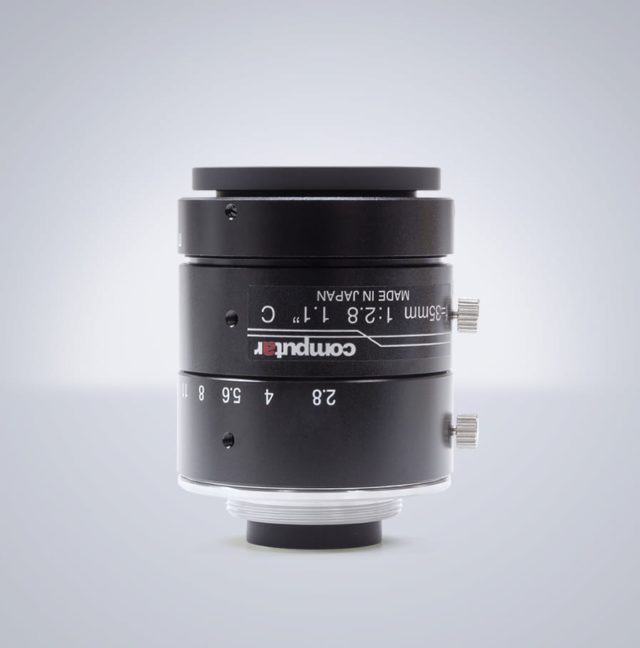

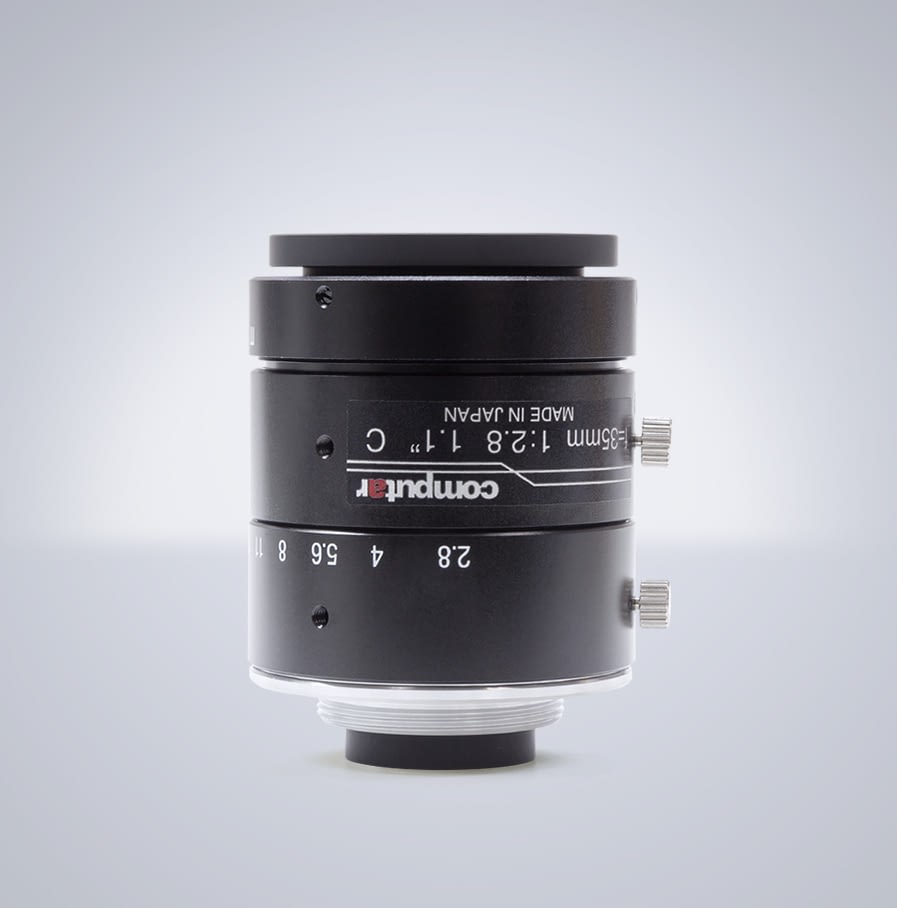

| Manufacturer Model # | Computar V3528-MPY |
|---|---|
| LUCID SKU | CC350-12M |
| Focal Length | 35mm |
| Iris Range (f no.) | f2.8 f16 |
| Angle of View (H x V) * *Mounted to 1.1” sensor cameras | 22.9° x 16.9° |
| Focus Range (from front of the lens) | ∞-300mm |
| Operation of Focus | Manual |
| Operation of Iris | Manual |
| Filter Thread | M34 x 0.5mm |
|---|---|
| Mount | C-Mount |
| Sensor Size (max.) | 1.1” |
| TV Distortion | 0% (2/3), 0% (1), -0.1% (1.1) |
| Diameter | φ39.5 x 45.2mm |
| Weight | 103.6g |
| Locking Screws Bundled | 4 total: 2x normal, 2x low profile provided by LUCID for lens tube fit |
