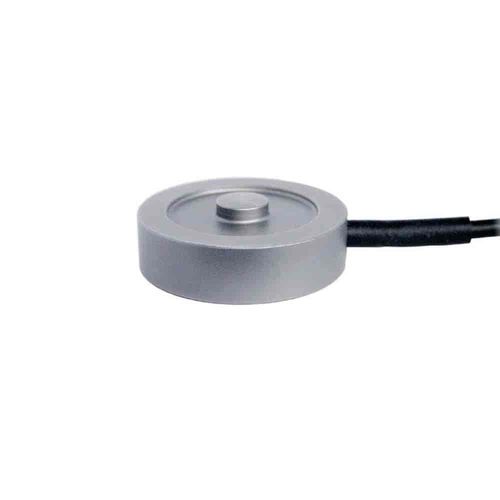

FJ Series miniature low-profile load cells are compression load cells with excellent long-term stability. Their stainless steel design ensures their resistance in demanding industrial environments. These sensors are designed to be mounted on a flat surface, they are equipped with a spherical button for optimal support. To be connected to the ACRN measuring consoles. Benefits High precision Miniature cells Inox Technical informations Power supply — 10V dc Sensitivity — 2 mV/V Linearity — 0.25% F.S (Full scale) Hysteresis — 0.25 % F.S Repetability — 0.10 % F.S Zero Balance — +/-2 % F.S Operating temp range — -54 to 121°C Compensated temp range — 16 to 71°C Safe overload — 150% of capacity Ultimate overload — 300% of capacity Output impedance — 350 Ohm minimum Deflection — 0.076 mm
Технические характеристики
CharacteristicsTypecompressionFormbutton typeOther characteristicsstainless steel, miniature, custom-madeRated force
Max.: 200,000 N
Min.: 100 N
Length
1.5 m (411)
