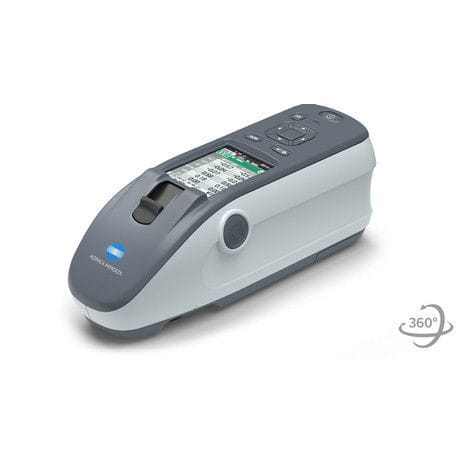

The CM-23d is a portable sphere type spectrophotometers with horizontal alignment, which is most convenient to measure the colour of flat or large samples. The CM-23d delivers measurement data including (SCI) and excluding (SCE) surface conditions in one measurement sequence. Fit for left- or right hand users, easy and simple operation is achieved with the common interface known from other Konica Minolta portable devices and the sample observation port allows perfect sample positioning. The large information display shows measurement data either as numerically or graphically. The CM-23d combines very simple, comfortable and intuitive use with the highly sophisticated, innovative and patented Optical System to meet the high expectations for colour measurement in Quality Assurance. Together with the high energy xenon flash illumination and the high resolution monolithic dual beam monochromator, the entire optical guarantees substantial advantages in speed and reliability. The sleek body and a large color display ensure perfect handling in any position, while keeping setting operations simple and convenient.
Технические характеристики
CharacteristicsSpectrumcolorOptical designdouble-beamLight sourcexenonMeasurement methodreflectance, sphereCommunicationUSBOther characteristicsportable, with photodiode arrayTechnical applicationsfor color measurement, measuring, for analysis, for industrial use, educational, for spectral analysis, for solidsWavelength
Max.: 700 nm
Min.: 400 nm
Wavelength precision
10 nm
Transmission range
Max.: 175 %
Min.: 0 %
Width
81 mm (3.19 in)
Depth
229 mm (9 in)
Height
93 mm (3.7 in)
Weight
620 g (21.87 oz)
