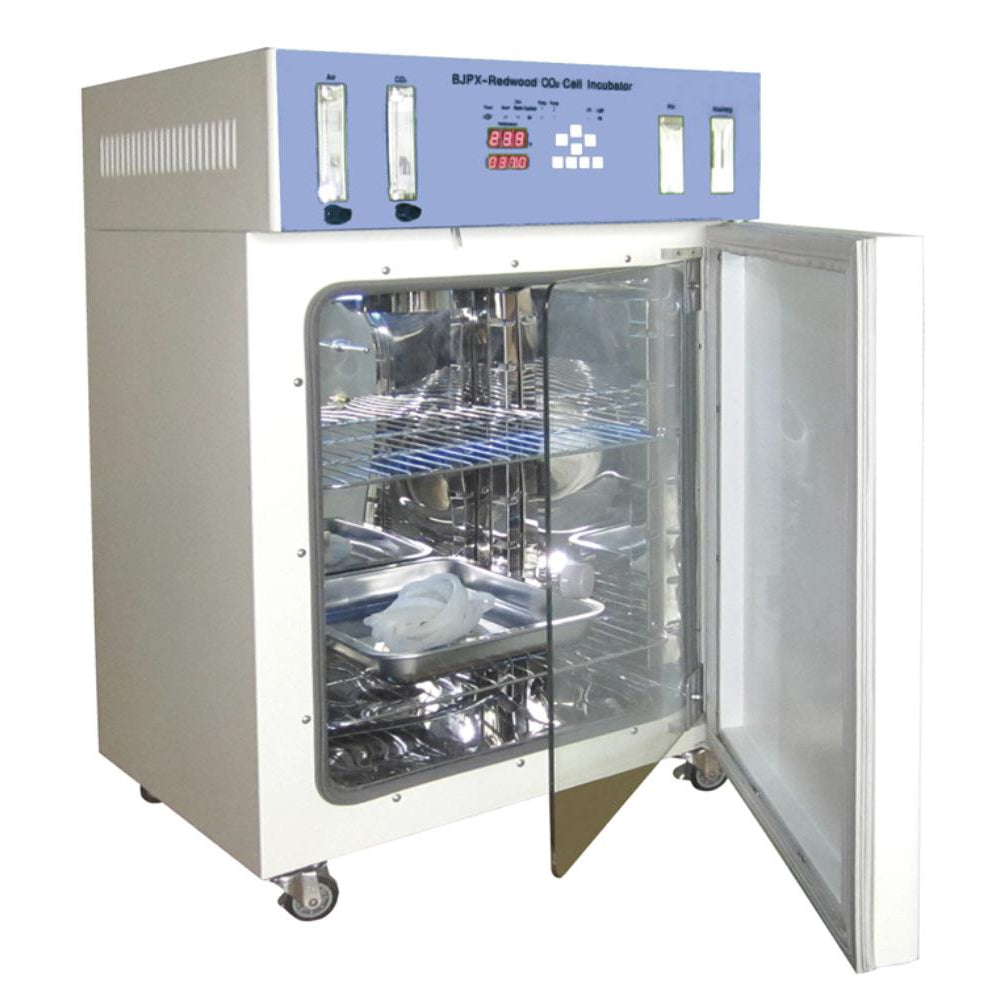

CO2 incubator for cell culture.
Features
- Water tank for humidity in the chamber
- Airjacket: equipped with UV lamp for sterilizing, Water jacket: equipped with HEPA filter
- Equipped with USB port and LCD touch screen, meaning the incubator can save data in real time.
- High quality CO2 gas filter ensures the inside gas quality.
- SMC brand gas circuit valves ensure more stable CO2 concentration and less consumption of CO2 gas
- Microcomputer controller, LED displays temperature, CO2 concentration, run-time and timing
- High quality infrared sensor for accurate CO2 concentration
- The working chamber adopts round angle structure for easy clean.
- Double-layer door structure: open outer door, observe studio experimental results though the inner door which is made from high intensity toughened glass, temperature and humidity unaffected.
- Independent heating system of the door
Specifications
Cat. No.
EB420-050
EB420-080
EB420-080W
EB420-160
EB420-160W
Capacity
50L
80L
160L
Heating
Air jacket
Air jacket
Water jacket
Air jacket
Water jacket
Temp. Range
RT +5 ~ 60°C
Control Type
Microcomputer controller
Temp. Fluctuation
≤ ±0.2°C (at 37°C)
Temp. Uniformity
≤ ±0.3°C (at 37°C)
Time Setting
999h or continuous
Alarm
Audible and visual alarm,Over-temperature alarm,CO2 Concentration alarm.
Shelves
2 pcs/ adjustable
Material
External cold-rolled steel with painting, internal stainless steel
Door
With inner door and external door
CO2 Range
Infrared sensor,range 0~20%
CO2 Control Resolution
0.1%
Humidification Type
Water tank for natural evaporation
Sterilisation Type
UV lamp for air jacket
Ambient Temp. & Humidity
18~30°C, suggest 2±2°C, relative humidity ≤80%
Caster
Foot master caster
Consumption
350W
600W
875W
650W
1000W
Power Supply
AC110/220V±10%, 50/60Hz
Internal Size (W*D*H)mm
368*387*408
398*446*498
380*450*590
498*546*678
498*480*722
External Size (W*D*H)mm
500*527*821
600*596*921
648*553*1057
795*835*1255
747*654*1260
Packing Size (W*D*H)mm
655*685*970
735*735*1070
795*835*1255
790*835*1255
877*784*1430
Gross Weight (kg)
110
138
158
168
198
