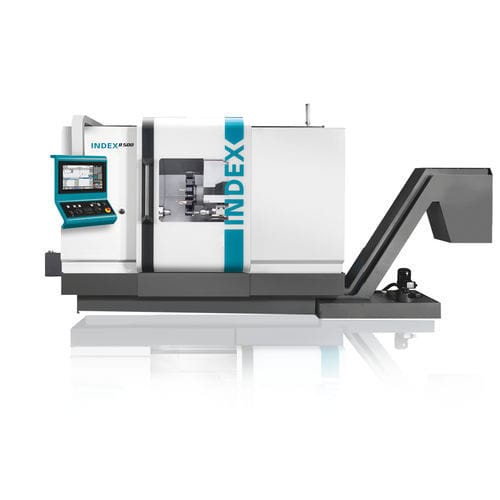

Machine highlights Your benefits Clearly structured and ergonomic work area concept Rigid mineral cast bed in 45° block design for high accuracy Work spindle with belt drive for high torques NC tailstock with electrically controlled axis Already included: the operating system iXpanel i4.0 ready with 18.5” touch screen — based on Siemens S840D sl Structured machine design The INDEX B500 represents a logical further development of proven manufacturing solutions within the INDEX Group. Individually equipped, this new flexible universal lathe takes its place both in tooling and prototyping, but also in production Decades of accumulated know-how is reflected in numerous design details, such as in a pocket in the panel above the mainspindle which ensures collision-free use of long boring bars. The components Main spindle Holding brake for indexing the axis Star turret and compound slide setup 12 live tool stations• VDI 40 according to DIN 69880 with patented W-serration NC tailstock electronically freely positionable generously dimensioned roller guides electronically adjustable pressure force up to 10,000 N Cone center MK 5 or SK 30 Counter spindle Spindle clearance dia. 82 mm, chuck up to dia. 250 mm Speed max. 3,150 rpm Spindle power 15 kW (40% duty cycle) Torque 204 Nm (40% duty cycle) Holding brake for indexing the axis
Технические характеристики
CharacteristicsControl typeCNCNumber of axes2-axisNumber of tool stations12 toolsOther characteristicsuniversal, high-precision, with turret, spindle, Y-axis, rigidDiameter
400 mm (15.75 in)
Spindle speed
4,000 rpm (25,132.741 rad.min-1)
Maximum cutting length
200 mm (8 in)
Bar capacity
102 mm (4 in)
Axe X
360 mm (14 in)
Axe Z
750 mm (30 in)
Rapids on X
40,000 mm/min (26 in/s)
Rapids on Z
40,000 mm/min (26 in/s)
Nominal power
40 kW (54.4 hp)
Maximum torque
375 Nm, 550 Nm, 910 Nm (277 ft.lb)
Overall lenght
3,252 mm (128 in)
Overall width
1,900 mm (75 in)
Overall height
2,290 mm (90 in)
Weight
7,800 kg (17,196 lb)
