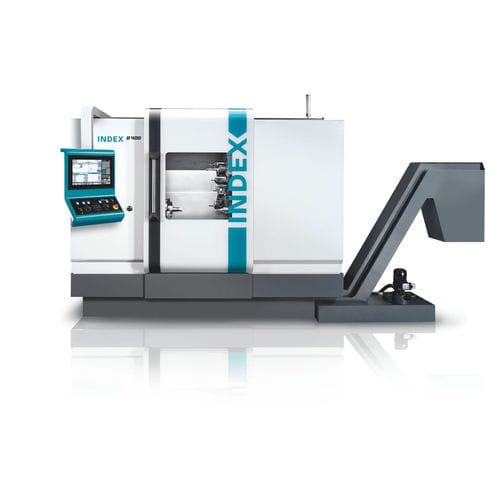

Machine highlights Your benefits Clearly structured and ergonomic work area concept Rigid mineral cast bed in 45° monoblock design for high accuracy Work spindle with belt drive for high torques NC tailstock with electrically controlled axis Already included: the operating system iXpanel i4.0 ready with 18.5” touch screen — based on Siemens S840D sl Structured machine design The INDEX B400 represents a logical further development of proven manufacturing solutions within the INDEX Group. Individually equipped, this new flexible universal lathe takes its place both in tooling and prototyping, but also in production Decades of accumulated know-how is reflected in numerous design details, such as in a pocket in the panel above the mainspindle which ensures collision-free use of long boring bars. The components Main spindle Holding brake for indexing the axis Star turret and compound slide setup / Disc turret Machining possible up to 70 mm below turning center 6,000 rpm, 8.8 kW, 19.5 Nm (25%) NC tailstock electronically freely positionable generously dimensioned roller guides electronically adjustable pressure force up to 10,000 N Cone center MK 5 or SK 30 Counter spindle Spindle clearance dia. 65 mm, chuck up to dia. 175 mm Spindle power 12 kW (40% duty cycle) Torque 119 Nm (40% duty cycle)
Технические характеристики
CharacteristicsControl typeCNCNumber of axes2-axis, 3-axisNumber of tool stations12 toolsOther characteristicsuniversal, high-precision, high-productivity, with turret, spindle, Y-axis, rigidDiameter
315 mm (12.4 in)
Spindle speed
4,000 rpm (25,132.741 rad.min-1)
Bar capacity
82 mm (3 in)
Axe X
360 mm (14 in)
Axe Z
750 mm (30 in)
Rapids on X
40,000 mm/min (26 in/s)
Rapids on Z
20,000 mm/min (13 in/s)
Nominal power
40 kW (54.4 hp)
Maximum torque
375 Nm, 550 Nm (277 ft.lb)
Overall lenght
3,252 mm (128 in)
Overall width
1,900 mm (75 in)
Overall height
2,290 mm (90 in)
Weight
7,800 kg (17,196 lb)
