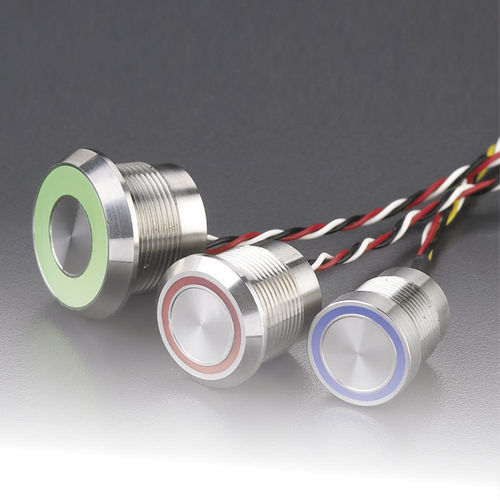

capacitive technology 1P68/1P69K and IK10 illuminated versions auto-calibration function NO or NC contact, momentary or latched Capacitive pushbuttons activate with the touch of a finger. An automatic calibration function ensures that the button constantly adapts to changes in its environment. As sensitive as a touchscreen, those capacitive buttons are perfect for industrial applications where repetitive activation can cause operator fatigue. Max current : 200 mA, 24 VDC Power supply : 5VDC, 12VDC or 24VDC Contact type : ON-(OFF) or ON-OFF Consumption (no LED) : 7mA Consumption (with LED) : 25mA Electrical life: 50 million cycles Output: NPN or PNP LED circuit can be independent or linked to contact Operating temperature : from 20°C to +65°C Impact resistance: IK10 Ingress protection : IP68 and IP69K following IEC60529 EMC: compliant with EN61000-4-2 standards Body:Stainless steel 316L or Anodized aluminum Key: Stainless steel 316L or Anodized aluminum Wires (F): stranded 0.22mm2, L=300mm Connector ( C) : HE14 6V, compatible with AMP/TYCO281839-3 Mounting hole : from 16,2 to 25,2 mm Panel thickness : from 0,75 to 4mm
Технические характеристики
CharacteristicsTypecapacitiveProtection levelIK 10, IP69K, IP68Other characteristicsstainless steel, aluminum
