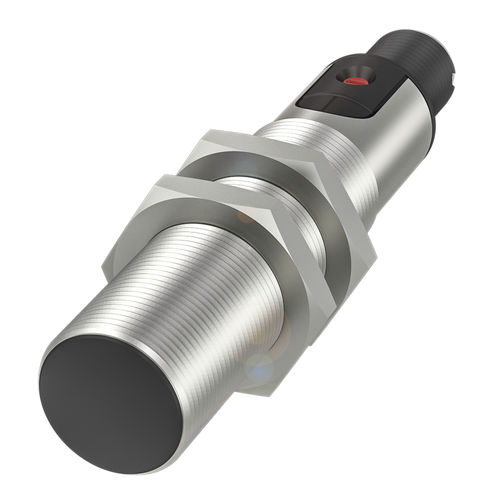

Dimension Ø 18 x 88.5 mm Series M18 Thread (A) M18x1 Installation for flush mounting Connection Connector, M12x1-Male, 3-pin Switching output PNP normally open (NO) Switching frequency 100 Hz Sensitivity Switching distance adjustable Housing material 1.4305 stainless steel Material sensing surface PBT Operating voltage Ub 10…30 VDC Approval/Conformity CE UKCA cULus WEEE IP rating per IEC 60529 IP67
Технические характеристики
CharacteristicsTechnologycapacitiveShapecylindricalDiameterM18Output signalPNPElectrical connectionM12 connectorSupply voltage24 Vdc, 15VDC, 12 VdcMountingflushMaterialstainless steelProtection levelIEC, IP67Other characteristicsnon-contactMeasuring range
Max.: 8 mm (0.31 in)
Min.: 1 mm (0.04 in)
Process temperature
Max.: 85 °C (185 °F)
Min.: -25 °C (-13 °F)
