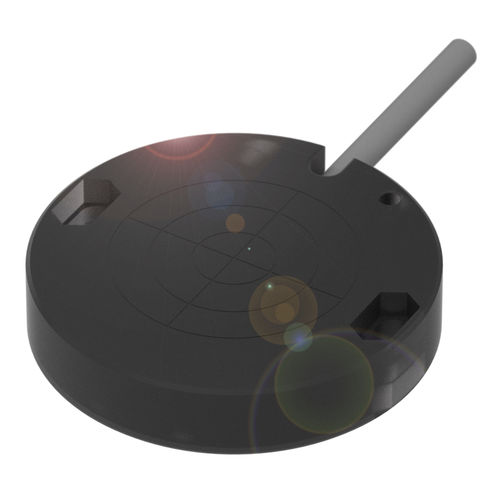

Dimension Ø 50 x 10 mm Series D50 Installation for flush mounting Connection Cable, 2.00 m, PVC Switching output PNP/NPN NO/NC programmable Switching frequency 50 Hz Sensitivity Switching distance adjustable Housing material POM Material sensing surface POM Operating voltage Ub 10…30 VDC Approval/Conformity CE cULus WEEE IP rating per IEC 60529 IP67
Технические характеристики
CharacteristicsTechnologycapacitiveShapecylindricalOutput signalPNPSupply voltage24 Vdc, 15VDC, 12 VdcMountingflushMaterialplasticProtection levelIEC, IP67Measuring range
Max.: 25 mm (0.98 in)
Min.: 2 mm (0.08 in)
Process temperature
Max.: 60 °C (140 °F)
Min.: -30 °C (-22 °F)
