Cables and Connectors

Magnaflux provides a broad range of flexible, heavy-duty, rubber coated cables in standard lengths of 15 and 20, along with lug and either-end connectors for attaching cables to its magnetizing equipment, wet benches, power packs and mobile units.

Доставка импортных компонентов по России от 3х недель транспортными компаниями СДЭК, Деловые Линии, Major Express.

Оплата физическими и юридическими лицами безналичным расчетом.

Цена может измениться после запроса у поставщика!

Product Information

Cables

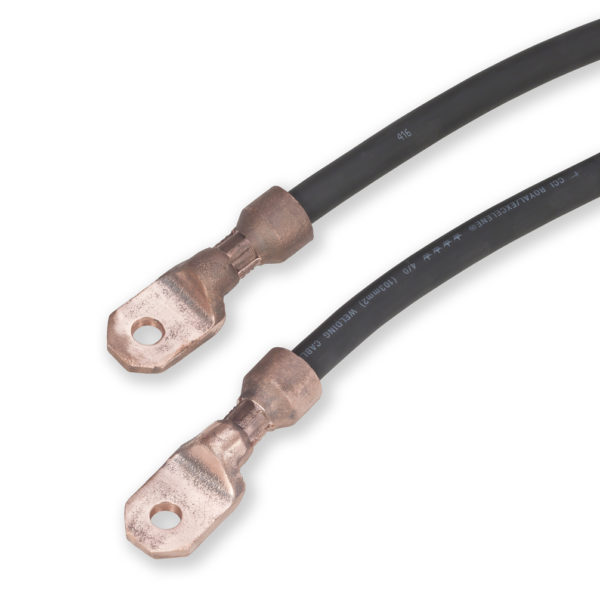

Rubber-covered flexible cables are available in standard lengths of 15’ (4.57 m) and 20’ (6.09 m) with a choice of either end or lug connectors. Custom cables and replacement connectors are also available.

Part Numbers:

626350-180 4/0 cable assembly, 15 ft / 4.6 m, two lug terminals
626350-240 4/0 cable assembly, 20ft/6m, two lug terminals
628833-180 4/0 cable assembly, 15 ft / 4.6 m, Quick Connect terminals QC-M to QC-F
628833-240 4/0 cable assembly, 20 ft / 6 m, Quick Connect terminals QC-M to QC-F

Specifications Compliance: ASTM E709-08, ASTM E1444, BPVC

Connectors

Connectors for attaching 4/0 cables to Magnaflux magnetizing equipment, including Wet Benches, Powerpacks, Mobile Units.

Part Numbers:

626342: Terminal lug for 4/0 cable
628828: Quick Connect female terminal (QC-F) for 4/0 cable
628829: Quick Connect male terminal (QC-M) for 4/0 cable
