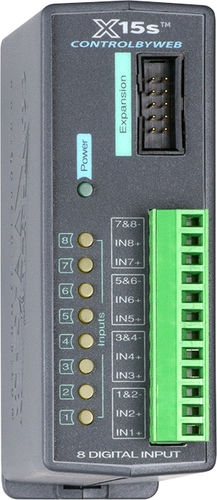

The X-15s has eight optically-isolated digital inputs and is an expansion module for an X-400 or X-600M controller. The X-15s’ isolated inputs are suitable for industrial environments and allow the grounding system of the monitored equipment and the low voltage circuits of the X-15s to be electrically separate. Internally the X-15s has a co-processor which provides enhanced features including: pulse counting, pulse duration, accumulated pulse time and frequency measurements. All 8-inputs have separate measurements. One or more X-15s expansion modules can be connected to an X-400 or X-600M controller with a ribbon cable. The ribbon cable provides both power and communications to the expansion modules. Features 8 Optically-isolated digital inputs Digital input functions: Monitor State, Control Relays, Control Remote Relays, Count, Frequency, High Time, ON Time Eight LEDs for inputs 1-8 Removable terminal connector Powered through expansion bus — no separate power supply connections are required Great for monitoring applications including: Button/Switch Inputs Security Sensors Flow Meters Machine Status and much more…
Технические характеристики
CharacteristicsOptionsI/O, bus, securityOther characteristicsindustrial
