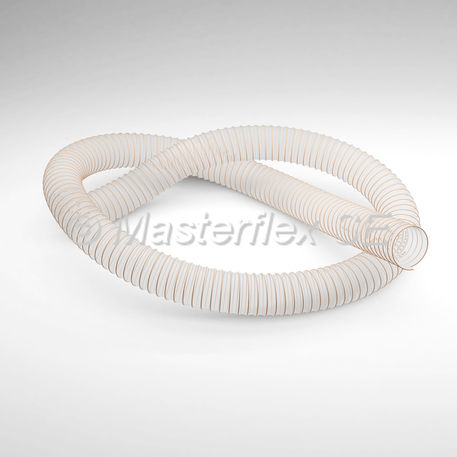

PU suction hose / transport hose, medium weight, good flexibility, flame retardant according to DIN EN 45545-2 Construction / Material Type of construction — Profile extruded hose with metal spiral Execution of the wall — made of specified material, Wall thickness approx. 1.0 mm Specifications of the wall — Flame retardant according to EN 45545-2:2013 +A1:2015: R22 HL1, HL2, HL3, R23 HL1, HL2, HL3 Properties Specifications of the product — Tested for rail vehicles according to DIN 5510 and DIN EN 45545-2 Chemical Properties — good resistance to petrol, good resistance to chemicals, good resistance to oil, good UV resistance, halogen-free, hydrolysis resistant, microbe-resistant, plasticiser-free — Customizing Options optional item modification (on request) — other lengths, other nominal widths, with customer-specific imprint
Технические характеристики
CharacteristicsUsefor bulk materialsMaterialPUApplicationssuction, transport, for automotive applications, for railway applicationNormsDINOther characteristicsflexible, chemical-resistant, oil-resistant, UV-resistant, microbe-resistant, hydrolysis-resistant, halogen-free, flameproof, spiral wireInner diameter
Max.: 140 mm (5.512 in)
Min.: 20 mm (0.787 in)
Outer diameter
Max.: 150.2 mm (5.913 in)
Min.: 28 mm (1.102 in)
Pressure
Max.: 2.4 bar (34.809 psi)
Min.: 0.3 bar (4.351 psi)
Temperature
Max.: 90 °C (194 °F)
Min.: -40 °C (-40 °F)
Delivered length
25 m (8200)
