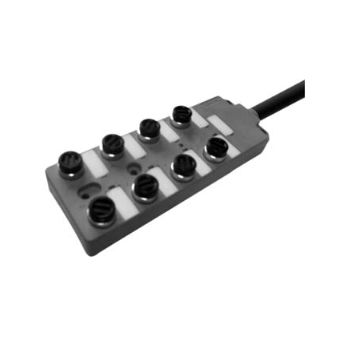

• — Distribution Boxes,8 port Cable Version. • — 5 pôles 4 wires.with built-in LED’s(PNP). • — Earth connection,with dust covers and attachable molds. • — Standard length is 5 meter cable, other cable length or cable spécifications on requests. Technical Data 1. — Application Class: 2. — Materials: Housing: Contact: Réceptacle Shell: Insert: O-Ring: 3. — Electrical Data: Contact Résistance: Current Rating: Working Voltage: Insulation Résistance: -15cC to +90:C Nylon 6/6 Optional-blue Brass.gold over nickel plating Brass.nickel plated PUR(Polyurethane),black Viton s5mQ 4 Amps per outlet 12 Amp max per box 10-30VDC >10SQ 4. — Mechanical Data: Insertion Force (contact): Withdrawal Force (contact): Protection: Shock: Vibration: *2.0N (.45LBS) s0.5N (.11LBS) IP68,NEMA 6P(only in fully locked position) IEC-68-2-27 IEC-63-2-6 5. CE Conformity with Standards: EN50082-1, EN50082-2 and IEC60947-5-2
Технические характеристики
CharacteristicsConstructionbuilt-inConfigurationrectangularApplicationdistribution, dataProtection levelNEMAOther characteristicsprotectionWidth
54 cm (21.3 in)
Height
152 cm (59.8 in)
Depth
18 cm (7.1 in)
