Description

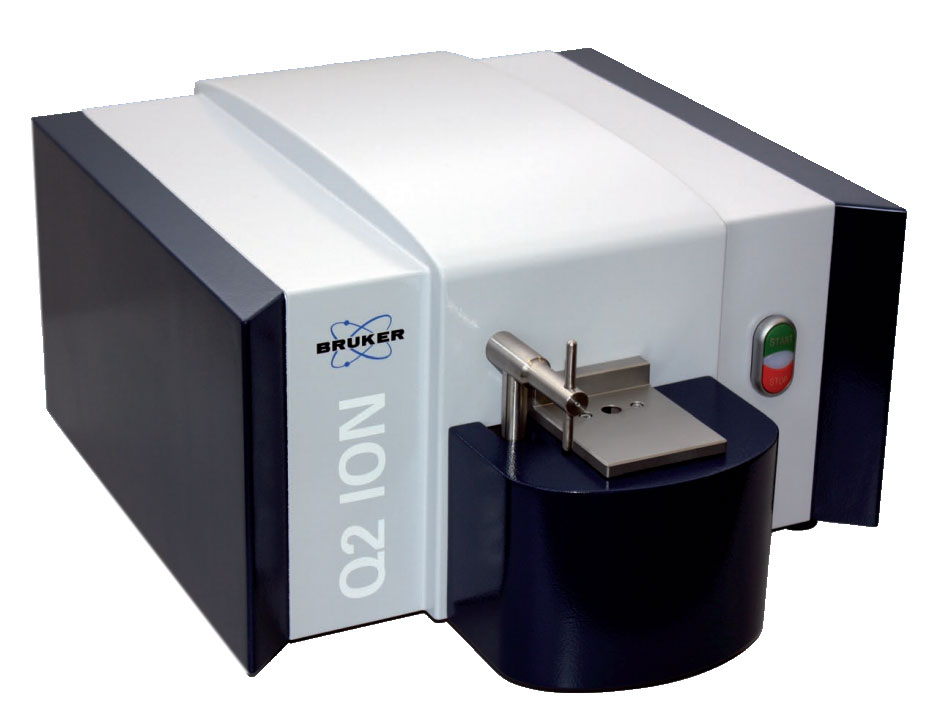

The Bruker Q2 ION Ultra-Compact Spare OES Metals Analyzer is one of the smallest and lightest ultra-compact Optical Emission Spectrometer for metals analysis available. Besides the classical ‘analysis workflow,’ the new Q2 ION now also offers a dedicated workflow for Positive Material Identification (PMI), especially useful for incoming material testing and quality control of metal alloys. The Q2’s primary applications and metal matrices include copper, aluminum, and iron along with being able to analyze a variety of metal alloys. The Q2 ION is best suitable at smaller foundries, inspection companies, metal recycling, and metal fabricators.
VERSATILE AND EASY TO USE
This analyzer is so lightweight that it can be hand-carried to sites. The new generation of Q2 ION is a versatile multi-matrix system for comprehensive incoming material inspection and quality assurance of metal alloys. An affordable price and low operational costs make this spectrometer the ideal tool for smaller and medium-size businesses.
PATENTED OPTICAL SYSTEM
The Q2 ION contains a state of the art flat field CCD optics. The Active Ambient Compensation (AAC) provides users with stability when used in a temperature range from 10°C to 45°C (50° to 113°F). When combining the CCD detector with ClearSpectrum technology, the Q2 ION provides the best analytical performance.
ELEMENTAL SUITE
The controller of the Q2 ION now runs ELEMENTAL SUITE, the new hard- & software platform for Bruker Elemental analyzers. The ELEMENTAL SUITE utilizes Intuitive Windows-based software and offers simple, routine operation. This software also includes an analysis database and interfaces to MS Office Grade Library functions.
TYPES OF COMPANIES
- Foundries
- Metal processing plants
- Fabricators
- Quality control departments
- Warehouses
- Metal recyclers
- Inspection companies
TYPES OF METALS
- Iron & Steel and its alloys
- Aluminum and its alloys
- Copper and its alloys
- Ferrous alloys
- Many more
Технические характеристики
Specs
| Technical Data | |
| Optical System | Un-coated CCD detector with lowest dark current Flat field grating Argon purged for best transparency ClearSpectrum technology for advanced spectra deconvolution Active Ambient Compensation (AAC) for operation between 10C and 45C (50F and 113F) |
| Source Generator | Maintenance-free, two phase PWM generator Frequency 50 to 1000 Hz Spark and arc-like discharges from 10 &mu,s to 2 ms |
| Sparkstand | Nearly maintenance-free Low Argon consumption during measurement Argon quality 4.8 specified for spectrometry or better |
| ELEMENTAL SUITE | Intuitive Windows based software for simple routine operation Various user levels for secure and task-specific operations ELEMENTAL.SUITE software including analysis database and interfaces to MS Office Grade Library functions |
| Analytical Solution Packages (ASPs) | Different matrix calibration packages available ASPs cover all major elements and alloy groups Upgradable for future expansion |
| Electrical Data | 100 to 240 V (50/60 Hz) 200 W during measurement, 50 W during standby 16 A (240 V) or 25 A (100 V) slow blow fuse |
| Dimensions and Weight | Width 440 mm (17 inch) Height 220 mm (9 inch) Depth 390 mm (15 inch) Weight ~ 19 kg ~ (42 lbs) |
| Environmental Range | Temperature 10C — 45C (50F -113 F) Humidity 10 — 90%, no condensation |
| Options | Wire adapter, tube adapter Sample preparation Carrying case Notebook or desktop PC |
