Description

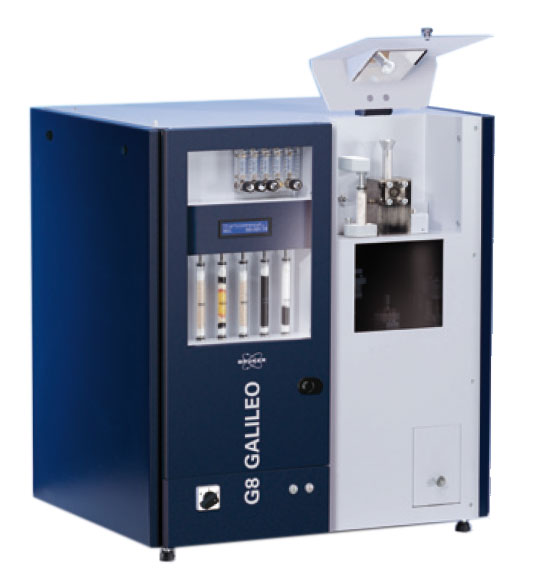

The Bruker G8 GALILEO ONH high-end analyzer can automatically analyze the precise concentration of oxygen, nitrogen and hydrogen in solid materials. It has facilities for analyzing all three elements O, N, and H, as a dual analyzer for two elements and as a single-element analyzer.
Inert Gas Fusion (IGF)
The G8 GALILEO ONH uses the inert gas fusion (IGF) process whereby sample material is melted in a graphite crucible at high temperatures.
Gas Fusion Analysis, also known as melt extraction (ME), extracts oxygen, nitrogen and hydrogen from a melted sample. The G8 GALILEO can analyze diffusable hydrogen levels in welds per ISO 3690 and AWS4 4.43 and high strength steel when combined with an external, infrared heated furnace.
Thermal Desorption Mass Spectrometry
The G8 GALILEO analyzer can also be connected with a mass spectrometer to improve its detection limit of ultra-low diffusible hydrogen concentrations, especially in high strength steels. This Thermal Desorption Mass Spectrometry (TDMS) technique improves its detection capabilities limit by more than one order of magnitude compared to a TCD.
Clear, Intuitive Software
The G8 GALILEO has a clear user interface designed to facilitate all analysis tasks from a single screen. Workflows like measurement, the input of the analysis parameters, statistical evaluation and calibration are separated into four distinct, intuitive views.
Applications
The G8 GALILEO ONH can be used for numerous applications in process and quality control and materials research including:
- Pins, granules or powder ranges from iron and steel
- Non-ferrous metals and alloys (e.g., Al, Cu, Ni, Co, Ti, Zr, and many others) Ores
- Ceramics
- Oxides
- Nitrides
- Hot extraction application (with the optional infrared furnace for detection of diffusible hydrogen in welds and steel materials/high strength steel)
Технические характеристики
Specs
| SPECIFICATIONS | |
| Oxygen Detector | Nondispersive IR absorption of CO, no moving parts, dual-range detectors with reference beam and on-board linearization |
| Nitrogen and Hydrogen Detector | Thermal conductivity detector with reference channel and adjustable gain amplifier |
| Argon and Hydrogen Detector | Mass spectrometer 1-100 amu, single quadrupole, optimized EI source and channeltron detector |
| Carrier Gases | He (O, N), Ar (O, N), N2 (H) each 99.995% purity (99.9990% for trace analysis) |
| Calibration Gas | Pure gases or certified mixtures (99.999% for each compound), 10 individual volumes in the gas dose device to cover a huge range |
| Sample Dimensions | Electrode Furnace: 8 x 8 mm cross section (pieces, chips, pins, granules), sample ports available for special applications |
| Cooling Water | Electrode Furnace: 4 l/min at 3 bar supply pressure IR Furnace: 1 l/min at 3 bar supply pressure, 15 20 C inlet temperature, 100 240 V / 50 60 Hz |
| Power Supply | 400 480 VAC (±, 10 %), 50 60 Hz, 32 A, 7 kVA, 1 Phase plus N or 2 Phase, grounding wire |
| Mass Spectrometer (MS) | 230 VAC, 50 60 Hz, 250 VA, 60 kg (63 cm x 48 cm x 64 cm) |
| External Infrared Furnace | 230 VAC, 50 60 Hz, 1,500 VA, 15 kg (48 cm x 30 cm x 66 cm) |
| Weight | 130 kg |
| Dimensions (W x H x D) | 80 cm x 83 cm x 60 cm |
