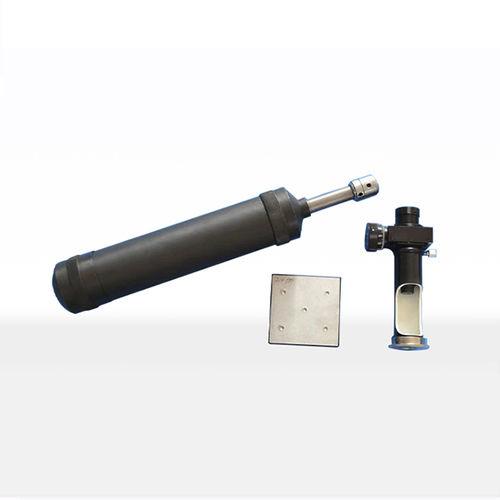

HBX-0.5 portable Brinell hardness testing machine Main features: Portable, dynamic measurement, high efficiency, Small size, easy to carry and operate, Construction solid, high test efficiency, High Precision Reading Microscope Measurement System, Accuracy conforms to GB / T231.2 ISO06506-2 and ASTM E10. Application: Determination of Brinell hardness of black metal with an elastic modulus approximately equal to 2 * 105 mPa, Especially for the work site for large parts of the Brinell hardness test. Specifications: Measuring range 100-400HBS Impact energy 4.9joule Dimensions 55 x 370mm Standard configuration: Portable Brinell Hardness Block:1pc 20xreading microscope:1pc
Технические характеристики
CharacteristicsTypeBrinellMountingportableProduct applicationsmeasurement, for large partsWeight
3.3 kg (7.3 lb)
