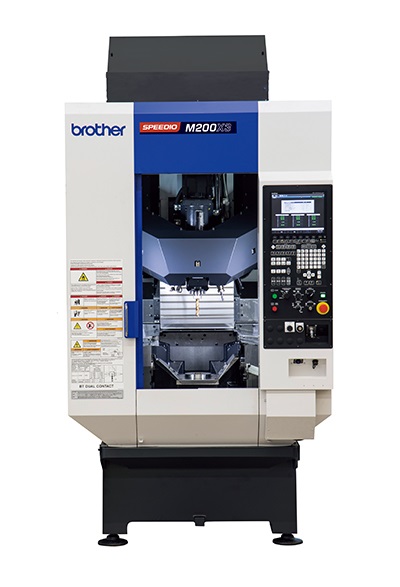

Based on the success of the Brother SPEEDIO M140X2, Brother introduces the M200X3 multi-tasking machine which integrates turning and machining on one machine. This capability reduces the handling time and improves the machining accuracy. The M200X3 comes with the Brother COO control pane and various energy savings functions. Automation is available with the Brother BV7 Loading System or for a more flexible, customized cell, contact Yamazens Automation division.
Технические характеристики
Specifications
| Specification | Detail |
|---|---|
| X Axis Travel | 7.9′ |
| Y Axis Travel | 17.3′ |
| Z Axis Travel | 12.0′ |
| A Axis (deg.) | 120 — -30 |
| C Axis (deg.) | 360 |
| Spindle RPM | 10,000/16,000 |
| Tapping RPM | 6,000 |
| Rapid Traverse | 1,969 IPM |
| Cutting Feedrate | X, Y, Z: 1~30,000 (0.04 ~ 1,181) when using high accuracy mode B |
| Work Area Size | 5.5 |
| Maximum Loading Capacity | Table Side 88.2 lbs. Tale Side 24.3 lbs. |
| ATC Capacity | 22 |
| Tool To Tool Time | 0.8 sec |
| Chip to Chip Time | 1.4 sec |
| Tool Shank Type | MAS-BT30 |
| Maximum Tool Length | 7.9′ |
| Maximum Tool Diameter | 3.1′ |
| Maximum Tool Weight | 6.6 Lbs |
