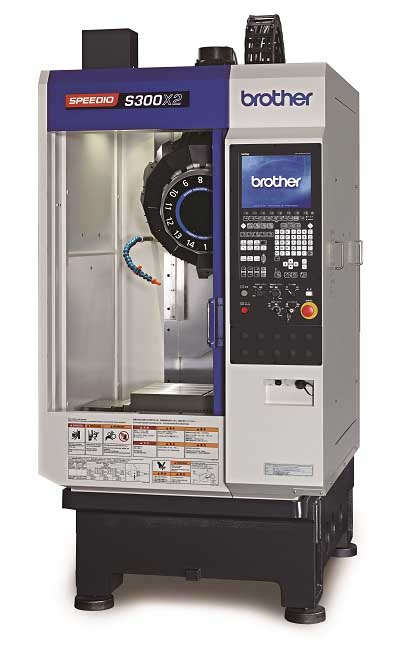

The Brother SPEEDIO S300X2 demonstrates its broad machining capabilities from high-speed, high-efficiency machining to heavy-duty machining all within the smallest compact sized machine the SPEEDIO line offers. The next generation CNC-C00 control unit greatly improves processing capabilities and functions while enhancing usability making this the EVERY SHOP MACHINE!
Технические характеристики
Specifications
| Specification | Detail |
|---|---|
| X Axis Travel | 11.8′ |
| Y Axis Travel | 15.7′ |
| Z Axis Travel | 11.8′ |
| Spindle RPM | 10,000/16,000/27,000 |
| Tapping RPM | 6,000/8,000 |
| Spindle Horsepower | 9.9/11.9/13.5/17.1 |
| Rapid Traverse | 1,969 IPM (2205 Z-Axis) |
| Cutting Feed rate | X, Y, Z: 1~30,000 (0.04 ~ 1,181) when using high accuracy mode B |
| Table Size | 23.4′ x 15.7′ |
| Maximum Loading Capacity | 551 Lbs |
| ATC Capacity | 14/21 |
| Tool To Tool Time | 0.7 sec |
| Chip to Chip Time | 1.3 sec |
| Tool Shank Type | MAS-BT30 |
| Maximum Tool Length | 9.8′ |
| Maximum Tool Diameter | 4.3′ |
| Maximum Tool Weight | 6.6 Lbs |
