Технические характеристики

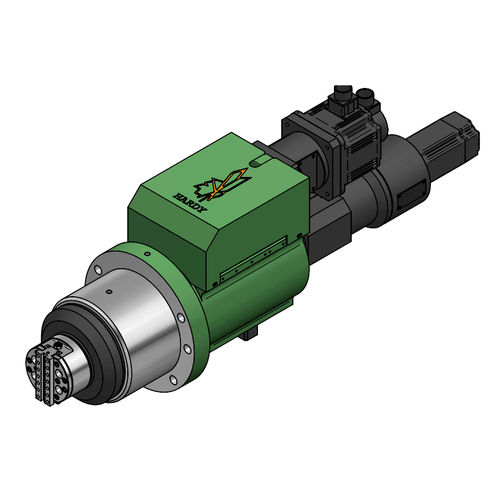

FMDM155 Built-in motor spindle with facing head is designed of a ball screw grade C5 driven which are incorporated with a servo motor for feeding. The roundness of spindle nose is within 0.002mm and repeatability of facing head slider is within 0.01mm and driven by a servo motor. This spindle unit is capable for processing like inner (ID) and outer (OD) turning, grooving, conical boring, conical threading, concave/convex rounding and other spherical machining. ．Facing slide stroke 8mm ．Facing slider repeatability within 0.005mm ．Motor Power : 3.7kW ．Maximum Stroke : 120mm ．Maximum RPM : 1600 ．Feeding is driven by a grade C5 ball screw ．OMRON proximity switch sensors and stand are furnished ．Oil cooler is required ．Driver is required ．Encoder is Optional
