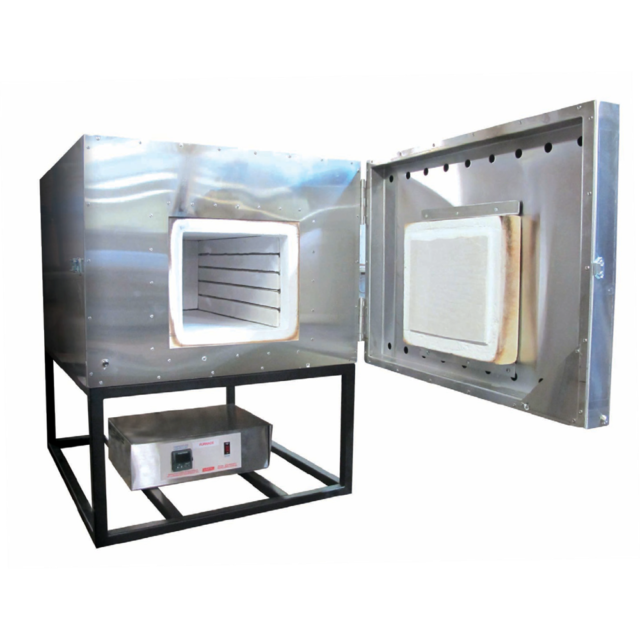

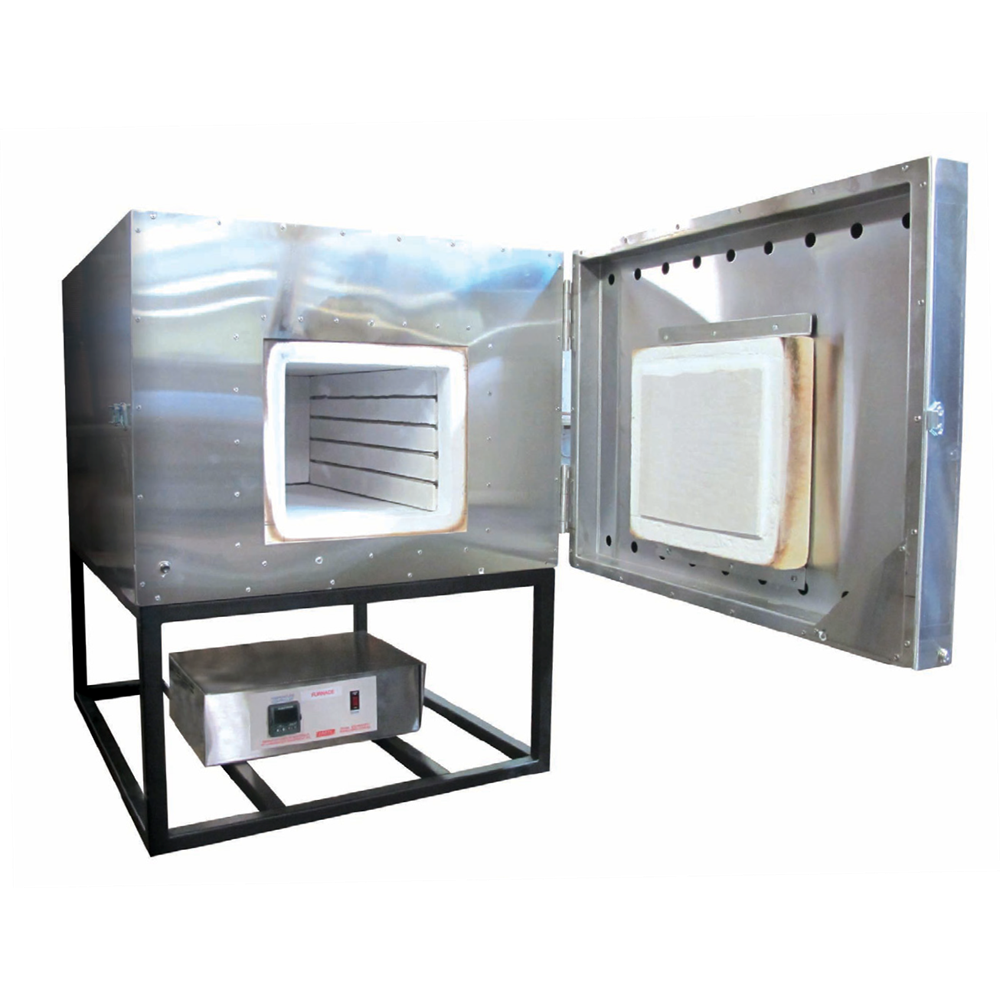

LABEC Large Capacity Furnaces are manufactured in Australia with the highest quality components for laboratory, commercial and research purposes. The exterior is manufactured from stainless steel for easy maintenance and excellent durability, whilst the double skinned construction keeps the exterior cool at high temperatures. The inner material is fibre board and provides excellent thermal stability.
Designed to suit applications such as mechanical testing apparatus. The furnace features light weight ceramic fibre insulation which enables rapid thermal cycling and heating is by electric embedded elements. The door is firmly held closed with adjustable side locking latch and has a safety cut off when the door is opened during operation.
Features:
- RCD/ ELB (earth leakage breaker)
- Type N Thermocouple
- Stainless Steel exterior
- Over Temperature Alarm Cut Off
Additional options — To suit requirements the addition of options such as programmable controllers, timers and cable access ports are also available.
Controller — Digital microprocessor based PID temperature controllers controls the temperature within the range +300°C to +1200°C or +1300°C.
Data logging — When optioned the controller can be connected via RS232/RS485 communication ports which can be connected directly to a data logger or computer to collect this information. Software is available for programming and monitoring.
Specifications:
Model ELCF-15-12
ELCF-15-13
ELCF-30-12
ELCF-30-13
Capacity 25L 68L Internal Dimensions (H x W x D) 210 x 240 x 500mm
210 x 435 x 740mm
External Dimensions (H x W x D)
800 x 610 x 800mm
800 x 610 x 800mm
Temperature Maximum +1200°C +1300°C
+1200°C
+1300°C
Temperature Accuracy
1°C
Temperature Fluctuation
+/- 1°C
Construction Temperature sensor — Type N
Heating system — Electric element
Interior — Ceramic lined
Exterior — Stainless steel Options Cable entry port, timer, programmable controller, custom diameter tubes, single or multiple heat zones, high temperature models, RS232 connection
Safety Over Temperature Alarm, temperature protection cut off, earth leakage breaker (ELB)
Power 4800W 6800W 6000W 7200 Weight 85kg 92kg 98kg 109kg
