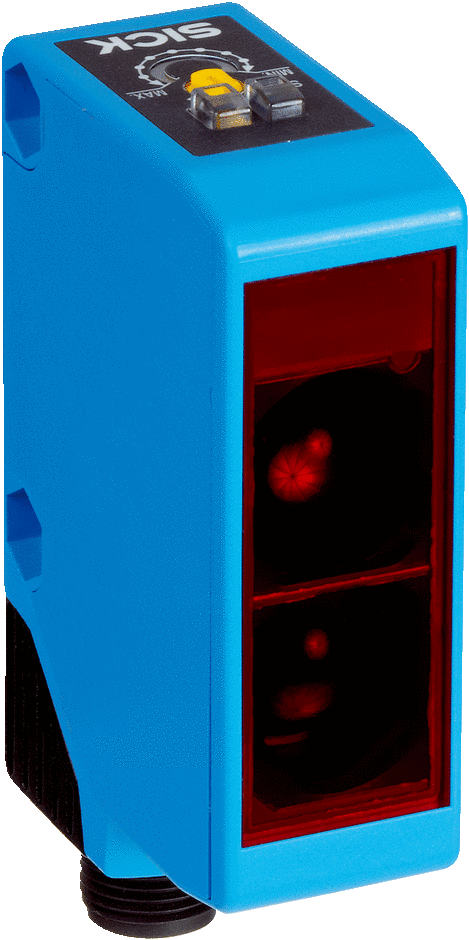

Sick WL280-2P2431
Datasheet:
- Article No.: 6044736
- Sensor/detection principle: Reflective sensor, Double lens
- Dimensions (W x H x D): 23.5 mm x 74.5 mm x 63 mm
- Housing shape (light output): Rectangular
- Operating distance, max.: 0.01 m … 15 m , 0.01 m . .. 12 m ,
- Sensing distance: 0.01 m … 13 m , 0.01 m … 11 m ,
- Type of radiation: Visible red light li>
- RADIATION SOURCE: LED
- Light spot size (distance): Ш 260 mm (8 m)
- Settings: Potentiometer
- Supply voltage: 10 V DC … 30 V DC
- Residual ripple: ? 5 Vss
- Current consumption: 20 mA
- Switching output: PNP
- Switching type: LIGHT/DARK
- Selectable switching type: Selectable via LIGHT/DARK switch (L/D)
- Output current Imax: 100 mA
- Rating: ? 0.5 ms
- Switching frequency: 1.000 Hz
- Connection type: Connector M12, 4-pin
- Protection circuits: A , B , C , D ,
- Protection class: III
- Weight: + 150 g li>
- Polarizing filter: ?
- Case material: Plastic, ABS
- Material, optics: Plastic, PMMA
- Protection type: IP66, IP67,
- Supply set: Mounting bracket BEF-W280, Reflector P250
- EMC: EN 60947-5-2
- Operating temperature range: –25 °C. .. +55 °C
- Storage temperature range: –40 °C … +70 °C
- UL File No: NRKH2.E300503 & NRKH8.E300503
- MTTFD: 1.671 years
- DCavg: 0%
- Series:W280-2
- Sensing distance:0.01 … 13 m
- Output type:PNP
- Type of radiation: visible red light
