Specification:
| Part Number | 1058168 |
| Dead time: | 2 ms |
| Output current IA : | ≤ 100 mA |
| Measuring range: | 0.15 m … 300 m, On reflective tape «Diamond Grade» |
| Ambient temperature : | Operation: -20 … +55 °C Operation with cooling case: -20 … +75 °C Storage: -40 … +75 °C |
| Multifunctional input (MF) : | 1 x MF1 |
| Supply voltage Vs: | DC 18 V … 30 V, limit values |
| Repeatability : | 2 mm |
| Connection type: | Male connector, M12, SPEEDCON™ compatible |
| Initialization time : | Typ. 1.5 s |
| Housing material: | Aluminum/zinc die-cast |
| Electromagnetic compatibility (EMC) : | EN 61000-6-2 / EN 61000-6-4 |
| Weight : | Ca. 800 g … 1,600 g |
| Switching output : | B (push/pull) MF1, MF2 |
| Indication: | 6 digit 5 x 7 dot matrix display, LEDs |
| Protection class: | III |
| Effect of air temperature: | 1 ppm/K |
| Max. movement speed: | 30 m/s |
| Data interface: | PROFINET |
| Acceleration (max.): | 15 m/s? |
| Output time: | Synchronous to PLC request (dependent on interfaces) |
| Power consumption: | At 24 V DC |
| Temperature drift: | Typ. 0.1 mm/K |
| Ripple : | 5 Vpp |
| Light source : | Laser, red |
| Modulation frequency: | Fix |
| Effect of air pressure: | 0.3 ppm/hPa |
| Enclosure rating: | IP 65 |
| Laser class: | 2 (EN 60825-1 / CDRH) |
| Typ. light spot size (distance): | 5 mm (+ 2 mm x distance in m) |
| Accuracy : | ± 3 mm |
| Internal measurement cycle: | 1 ms |
| Resolution: | 0.1 mm, 0.125 mm, 1 mm, 10 mm, 100 mm |
| Mechanical load: | Noise: EN 600 68-2-64 Shock: EN 600 68-2-27 Sine: EN 600 68-2-6 |

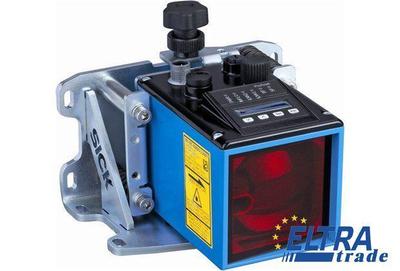

Buy Sick DL100-23AA2112 with the best possible price and delivery terms on eltra-trade.com
