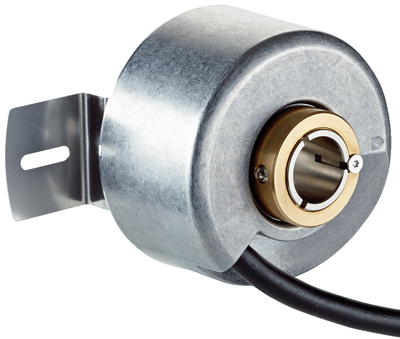

Sick DFS60B-TECA04096
Datasheet:
- Article: 1120888
- Number of pulses per revolution: 4.096
- Measuring step: 90° electrical / pulses per revolution
- Measurement deviation pitch at binary resolution: ± 0.008°
- Tolerances: ± 0.05°
- Communication interface: Incremental
- Communication interface, detailed description: TTL / RS- 422
- Number of signal channels: 6 channels
- Initialization time: 40 ms
- Output signal frequency: ? 600 kHz
- Load current: ? 30 mA
- Power consumption: ? 0.5 W (no load)
- Connection type: Connector, M23, 12-pin, radial
- Supply voltage : 10 … 32 V
- Basic signal, quantity: 1
- Basic signal, position: 90°, electrical, logical connections to A and B
- Polarity inversion protection: ?
- Output short-circuit resistance: ?
- MTTFd: time to dangerous failure: 300 years (EN ISO 13849-1)
- Mechanical design: Through hollow shaft
- Shaft diameter: 12 mm
- Weight: + 0.2 kg
- Material, shaft: Stainless steel
- Material, flange: Aluminum
- Material, housing: Aluminum casting
- Starting torque: 0.8 Ncm (+20 °C)
- Operating torque: 0.6 Ncm (+20 °C)
- Permissible shaft movement axial, static/dynamic: ± 0.5 mm / ± 0.2 mm
- Permissible shaft movement radial, static/dynamic: ± 0.3 mm / ± 0.1 mm
- Operating speed: ? 6,000 min?№
- Moment of inertia of the rotor: 40 gcmІ
- Bearing life: 3.6 x 10^10 revolutions
- Angular acceleration: ? 500.000 rad/sІ
- EMC: According to EN 61000-6-2 and EN 61000- 6-4
- Protection type: IP65, housing side, plug (according to IEC 60529), IP65, shaft side (according to IEC 60529),
- Permissible relative humidity: 90 % (Formation of condensation on optical scanning elements is not allowed)
- Operating temperature range: –40 °C … +100 °C, –30 °C … +100 °C,
- Storage temperature range: –40 °C … +100 °C, unpacked
- Shock resistance: 70 g, 6 ms (according to EN 60068-2-27)
- Vibration resistance: 30 g, 10 Hz … 2,000 Hz (according to EN 60068-2-6)
- Category: Incremental encoders
- Series: DFS60
- Number of pulses per revolution: 2501 … 5000
- Mechanical design : through hollow shaft
- Shaft diameter: 12 mm
