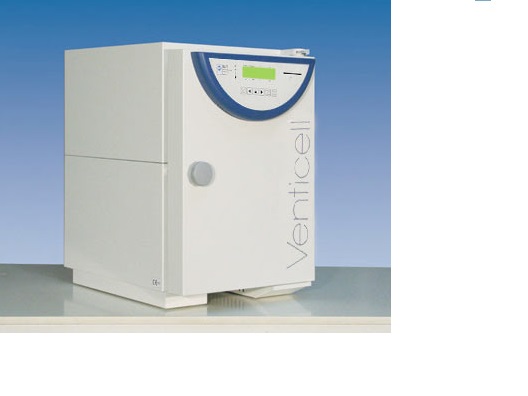

BMT Venticell 22 ECO *НОВИНКА* Механическая печь с принудительной подачей воздуха

Доставка импортных компонентов по России от 3х недель транспортными компаниями СДЭК, Деловые Линии, Major Express.
Оплата физическими и юридическими лицами безналичным расчетом.
Цена может измениться после запроса у поставщика!

Description

Features:

The Venticell line is built with a patented system of forced air circulation which ensures a homogeneous profile for all heating and drying processes. Ideal for materials with high humidity.

Specifications:

  • Dimensions: 560 mm x diameter of the air branch outer/inner 52/49 mm x 406 mm
  • Tray storage area: 185 x 265 mm
  • Racks: 4 max
  • Maximum weight per tray: 10 kg
  • Maximum weight inside the oven: 25 kg
  • Working temperature (beginning of the regulation): from 10 °C above ambient temp. to 250 °C
  • Temperature accuracy according to DIN 12 880 T2, at working temperature with closed air flap and door, &gt, 50 °C: time variation cca (±) 0,3 °C, space deviation (±) % cca (±)% of the reached temperature 1,1 %
  • Time required to reach 250 °C with closed air flap and voltage 230 V: 28 min
  • Heat emission at 250 °C: 420 W
  • Air exchange speed at 150 °C: 45 cca/hour
  • Electricity – mains 50/60 Hz: max. power input 0,96 kW
  • Nominal voltage: 230 V
  • Current: 4,2 A
  • Chamber volume: 22-liter
  • Working temperature: from +10°C over ambient temperature up to 250/300 °C
  • Patented system of forced air flow in the chamber ensures a homogenous temperature profile for all processes of drying, heating and sterilizing materials in laboratories
  • High operation comfort, precise temperature regulation and short times of temperature recovery in the chamber after the door opening
  • Greater speed and accuracy of all tempering procedures ensures cost-saving operation, suitable especially for materials of high humidity, for demanding and accurate tests and processes
  • Standard model with a Fuzzy logic microprocessor control system, control elements situated on a foil keyboard, process information indicated on a LED display
  • Output for a printer or PC connection
  • Validation possibility (IQ , OQ)

Технические характеристики
