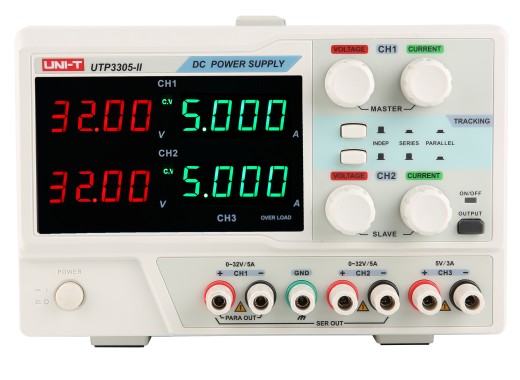

The UNI-T UTP3305-II is a linear high-performance, yet affordable lab power supply that features two fully adjustable channels and one fixed channel. The adjustable channels can provide 160W of power each, over the range of 0-32V and 0-5A. The third channel provides a fixed output of 5V and 3A. Internally, the adjustable channels can be connected in series or parallel, delivering respectively a maximum voltage of 64V or a maximum current of 10A. The UNI-T UTP3303-II power supply is an alternative power supply from the same series.
A disadvantage is that the power supply only has a ‘coarse’ adjustment knob, making it more difficult to set the power supply precisely. Also, the 3rd channel is fixed, which means that it is not possible to set a different voltage, for example 3.3V. The power supply also has one button to switch all channels on or off simultaneously, which makes it impossible to switch individual channels on or off.
Specifications Voltage range CH1/20-32V Current range CH1/2 0-5A Voltage range CH35V Current range CH33A Power335W Setting accuracy 10mV/1mA Ripple≤ 1mVrms/3mArms Dimensions226 x 146 x 319 mm Weight10.5 kg Accessories
The UNI-T UTP3305-II comes standard with:
- Power cord
