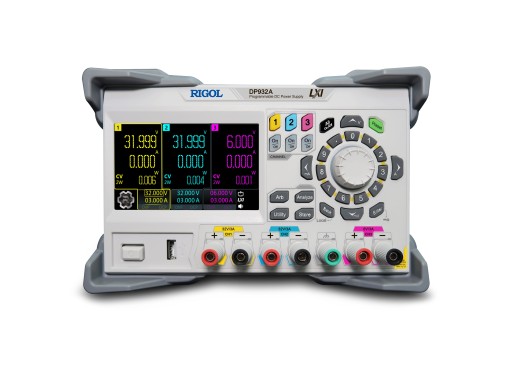

The Rigol dp DP932A is a programmable three channel power supply with a maximum total output of 210 W. The first 2 channels can each provide a voltage of 0 — 32 V and a current of 0 — 3 A and for the third channel this range is from 0 — 6 V and 0 — 3 A respectively. Each channel can be indivuadlly turned on or off and it has a function to generate ARB waveforms. The standard interface options consist of USB (host and device), LAN and digital IO. These options also make it possible for the power supply to be programmed. Datalogging and other analysis methods are also available on the 4.3′ LCD touch screen display.
Model Model DP932E DP932U DP932A DP2031 Power 198 W 210 W 210 W 222 W Rear output terminals No No No Yes, for channel 1/2 Voltage range / current range CH1 / CH2: 0 — 30 V / 0 — 3 A
CH3: 0 — 6 V / 0 — 3 A CH1 / CH2: 0 — 32 V / 0 — 3 A
CH3: 0 — 6 V / 0 — 3 A CH1 / CH2: 0 — 32 V / 0 — 3 A
CH3: 0 — 6 V / 0 — 3 A CH1 / CH2: 0 — 32 V / 0 — 3 A
CH3: 0 — 6 V / 0 — 5 A Resolution CH1 / CH2: 10 mV / 10 mA CH1 / CH2: 10 mV / 10 mA CH1 / CH2: 1 mV / 1 mA CH1 / CH2: 1 mV / 1 μA ARB waverform generation No Yes with min. dwell time of 1000 msec Yes with min. dwell time of 100 msec Yes with min. dwell time of 1 msec Interfaces USB host/device, LAN USB host/device, LAN USB host/device, LAN, Digital IO USB host/device, RS232, LAN, Digital IO Price 429 €429.00 Excl. VAT 529 €529.00 Excl. VAT 699 €699.00 Excl. VAT 989 Regular Price: €1,099.00 Now: €989.00 Excl. VAT Specifications Outputs3 Output switchEach channel Ripple350 μV / 2 mA Analysis methodsReal-time plot, trend, current pulse analysis and datalogging ProtectionOCP, OVP, OTP Display 4.3′ LCD touch screen Dimensions239 x 157 x 419 mm Weight9.15 kg Accessories
The Rigol DP932A power supply comes with the following accessories:
- Power cord
- One fuse
- USB cable
- Two pairs of 10 A connection cables
