This product is temporarily reduced in price until September 30th 2023!

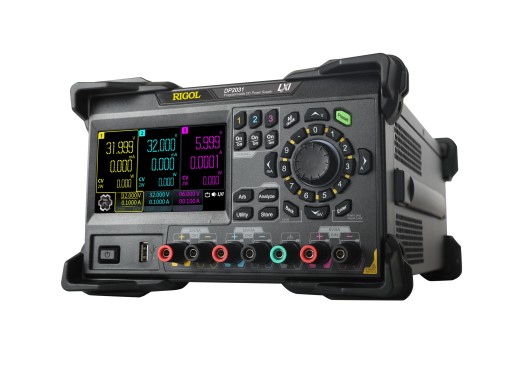

The Rigol DP2031 is a programmable three channel power supply with a maximum total output of 222 W. The first 2 channels can each provide a voltage of 0 — 32 V and a current of 0 — 3 A and for the third channel this range is from 0 — 6 V and 0 — 5 A respectively. Each channel can be indivuadlly turned on or off and there is also a rear output for channels 1 and 2. Furthermore, for this power supply a current resolution of as low as 1 µA is possible and it has a function to generate ARB waveforms. The standard interface options consist of USB (host and device), LAN, RS232 and digital IO. These options also make it possible for the power supply to be programmed. Datalogging and other analysis methods are also available on the 4.3′ LCD touch screen display.
This power supply can also be extended with a GPIB interface module, channel 3 10A high range mode and 7.5 kSa/s high-speed sampling option. For these options you can contact us, price on request.
Model Model DP932E DP932U DP932A DP2031 Power 198 W 210 W 210 W 222 W Rear output terminals No No No Yes, for channel 1/2 Voltage range / current range CH1 / CH2: 0 — 30 V / 0 — 3 A
CH3: 0 — 6 V / 0 — 3 A CH1 / CH2: 0 — 32 V / 0 — 3 A
CH3: 0 — 6 V / 0 — 3 A CH1 / CH2: 0 — 32 V / 0 — 3 A
CH3: 0 — 6 V / 0 — 3 A CH1 / CH2: 0 — 32 V / 0 — 3 A
CH3: 0 — 6 V / 0 — 5 A Resolution CH1 / CH2: 10 mV / 10 mA CH1 / CH2: 10 mV / 10 mA CH1 / CH2: 1 mV / 1 mA CH1 / CH2: 1 mV / 1 μA ARB waveform generation No Yes with min. dwell time of 1000 msec Yes with min. dwell time of 100 msec Yes with min. dwell time of 1 msec Interfaces USB host/device, LAN USB host/device, LAN USB host/device, LAN, Digital IO USB host/device, RS232, LAN, Digital IO Price 429 €429.00 Excl. VAT 529 €529.00 Excl. VAT 699 €699.00 Excl. VAT 989 Regular Price: €1,099.00 Now: €989.00 Excl. VAT Specifications Outputs3 Output switchEach channel Ripple350 μV / 2 mA Analysis methodsReal-time plot, trend, current pulse analysis and datalogging ProtectionOCP, OVP, OTP Display 4.3′ LCD touch screen Dimensions239 x 157 x 419 mm Weight9.95 kg Accessories
The Rigol DP2031 power supply comes with the following accessories:
- Power cord
- One fuse
- USB cable
- Two pairs of 10 A connection cables
