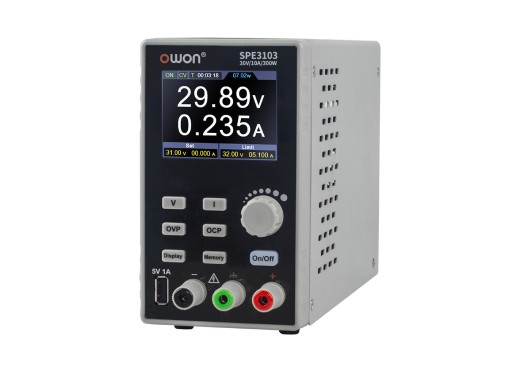

The Owon SPE3103 is a very compact single channel DC benchtop power supply with all the regular features such as over voltage (OVP) and over current protection (OCP). It has a high resolution at 10mV/1mA. The display is a high resolution 2.8′ LCD which displays set, limit and momentary parameters. The SPE3103 allows you to monitor the voltage and current in real-time, using graphs on the display. You can store and edit up to 4 groups of output waveforms. The power supply can be hooked up to a host PC with USB and communicate via SCPI. It makes for a great, simple, slim form factor power supply with plenty of power for beginners. Model overview Model SPE3102 SPE3103 SPE6103 Voltage 0.01 — 30 V 0.01 — 30 V 0.01 — 60 V Current 0.001 — 10 A 0.001 — 10 A 0.001 — 10 A Output power 200 W 300 W 300 W Ripple* ≤3 mVrms
≤30 mApp ≤3 mVrms
≤30 mApp ≤5 mVrms
≤30 mApp
OWON testing conditions: 10 uF electrolytic capacitor in parallel with 0.1 uF ceramic capacitor at output terminal. Without this circuit connected, the ripple will be significantly higher.
Specifications Resolution 10 mV / 1 mA Extra features Automatically applying settings on power-on, front USB port Memory 4 custom output waveforms Display 2.8′ colour LCD, 4 digits Connectivity USB (SCPI) Weight 1.5 kg Dimensions 226 x 82 x 142 mm (LxWxH) Accessories
All SPE series power supplies are delivered including:
- Power cord
- USB cable
- Fuse
