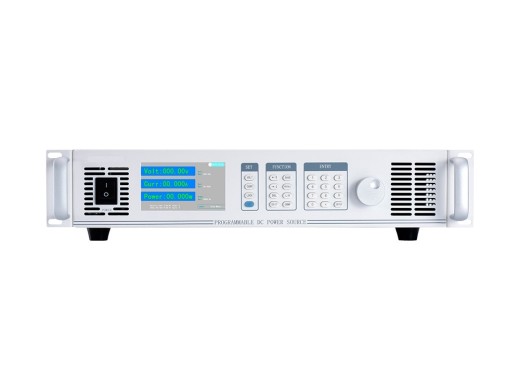

The Owon OWP3006H power supply has a maximum output of 3000W up to 80A and 60V. With the 10mV/1mA ouput resolution you get an accurate output. This power supply series supports multiple modes, for example fuction generator or step mode. Being able to put a graph on the display you can get a good overview of the output. These power supplies come with remote voltage compensation which will make sure that the voltage/amperage you set on the power supply is also what will be on the load. With a lot of programmability and the ability to mount it in a rack you get a good price-quality ratio
The rack-mount ability is 2U/3U and doesn’t apply for the 1KW models
Models
The models differ in maximum voltage, current and output power. ModelOWP1006HOWP1010HOWP1020HOWP1030H Voltage 60 V 100 V 200 V 300 V Current 30 A 15 A 8 A 5 A Output power 1000 W 1000 W 1000 W 1000 W Price 1070.25 €1,070.25 Excl. VAT 1070.25 €1,070.25 Excl. VAT 1070.25 €1,070.25 Excl. VAT 1070.25 €1,070.25 Excl. VAT ModelOWP3004HOWP3006HOWP3008HOWP3010HOWP3020HOWP3040HOWP3060H Voltage 45 V 60 V 80 V 100 V 200 V 400 V 600 V Current 100 A 80 A 60 A 45 A 23 A 12 A 6 A Output power 3000 W 3000 W 3000 W 3000 W 3000 W 3000 W 3000 W Price 1776.86 €1,776.86 Excl. VAT 1688.02 Regular Price: €1,776.86 Now: €1,688.02 Excl. VAT 1776.86 €1,776.86 Excl. VAT 1776.86 €1,776.86 Excl. VAT 1776.86 €1,776.86 Excl. VAT 1776.86 €1,776.86 Excl. VAT 1776.86 €1,776.86 Excl. VAT ModelOWP8010HOWP8020HOWP8040HOWP8060HOWP8100HOWP8150H Voltage 100 V 200 V 400 V 600 V 1000 V 1500 V Current 100 A 50 A 25 A 17 A 10 A 5 A Output power 8000 W 8000 W 8000 W 8000 W 8000 W 7500 W Price 3053.72 €3,053.72 Excl. VAT 3053.72 €3,053.72 Excl. VAT 3053.72 €3,053.72 Excl. VAT 3053.72 €3,053.72 Excl. VAT 3053.72 €3,053.72 Excl. VAT 3301.65 €3,301.65 Excl. VAT Specifications Total power3000 W ModeCC, CV, CP Outputs1 Output switchYes Voltage range0 — 60 V Current range0 — 80 A Resolution10mV/1mA ProtectionOLP, OCP, OVP, OTP InterfacesCAN, RS485 Display 4.3′ TFT Dimensions425 x 88 x 450 mm Weight14 kg Accessories
- Power cord
