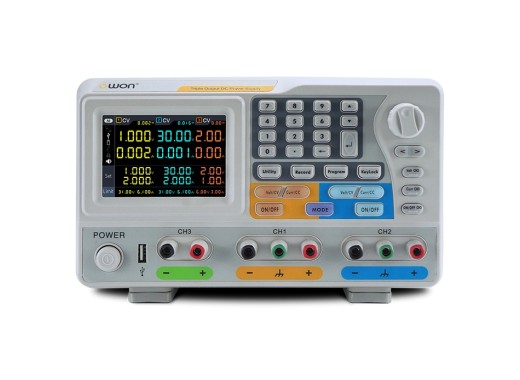

The Owon ODP3033 power supply belongs to the Owon ODP series and has 3 channels and a maximum power of 198W.
The Owon ODP series power supplies are accurate, programmable power supplies with colour display and a high resolution. These power supplies have a built-in automatic cooling system to prevent overheating.
The power supplies have 2 or 3 channels. The other channels provide a fixed output. This makes the power supplies suitable for supplying most circuits. The channels are mutually isolated, which results in low noise and high accuracy.
A nice feature of these programmable power supplies is that an arbitrary waveform can be programmed using 100 setpoints. It is also possible to store presets in 10 groups in order to quickly switch between different voltage and current settings. This makes it possible to use this power supply as a simple low-frequency function generator.
The 4′ colour LCD (480 x 320 pixels) display shows the voltage, current and power.
With the data logging function, you will be able to record up to 10K groups of data and display the recorded data in a chart.
The ODP3033 has a multi communication interface. This means that the power supply can be programmed over the USB, RS-232 or LAN interface. On top of that the ODP3033 also supports LabVIEW and SCPI.
Model overview
The models of the ODP series differ mainly in bandwidth. The most important specifications are listed next to each other in the table below.
Model ODP3033 ODP3063 ODP6033 Channels 3 3 3 Output voltage Channel 1: 0 — 30V
Channel 2: 0 — 30V
Channel 3: 0 — 6V Channel 1: 0 — 30V
Channel 2: 0 — 30V
Channel 3: 0 — 6V Channel 1: 0 — 60V
Channel 2: 0 — 60V
Channel 3: 0 — 6V Output current Channel 1: 0 — 3A
Channel 2: 0 — 3A
Channel 3: 0 — 3A Channel 1: 0 — 6A
Channel 2: 0 — 6A
Channel 3: 0 — 3A Channel 1: 0 — 3A
Channel 2: 0 — 3A
Channel 3: 0 — 3A Power Max. 198 W Max. 378 W Max. 378 W Price 297.52 €297.52 Excl. VAT 365.29 €365.29 Excl. VAT 409.09 €409.09 Excl. VAT Specifications Resolution1 mV / 1 mA Display4′ (480×320 pixels) colour LCD Weight9.8 kg Dimensions250 x 158 x 358 mm Accessories
The Owon ODP3033 power supply comes with the following accessories:
- Power cord
- USB cable
- Fuse
- Manual
