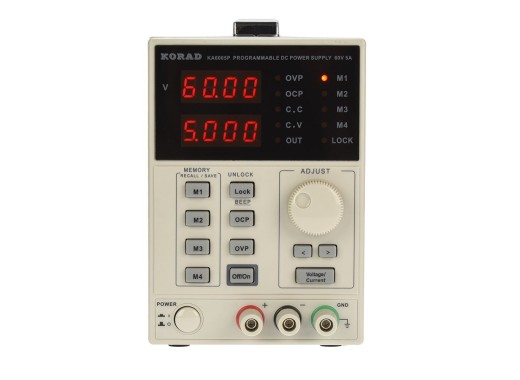

The Korad KA6005P power supply is a programmable DC power supply with a 4-digit display. It is programmable via the USB or RS232 connection. The power supply has an adjustment precision of 10mV/1mA and a switch to turn the power supply on and off. The Korad KA6005P has CC and CV modes. Additionally, due to the 5 memory slots, the preference settings can be stored and recalled easily. Furthermore, the Korad KA6005P power supply has a power of 300W.
Models
The difference between the two models we offer can be found in the connectors at the front. We offer a model with screw connectors and a model with safety connectors. The advantage of the model with screw connectors is that both banana plugs and separate wires can be inserted. Both models are identical in terms of functions and properties.
Safety connectorScrew connector
Specifications Voltage range 0 — 60V Current range 0 — 5A Setup accuracy 10 mV / 1 mA Read back accuracy 10 mV / 1 mA Ripple
(20Hz — 20 MHz) &le, 1mVrms 3mArms Eleshop noise production rating Weight 7.5 kg Dimensions 110 x 300 x 156 mm Accessoires
The Korad KA6005P power supply comes with the following accessories:
- User manual
- Power cord
