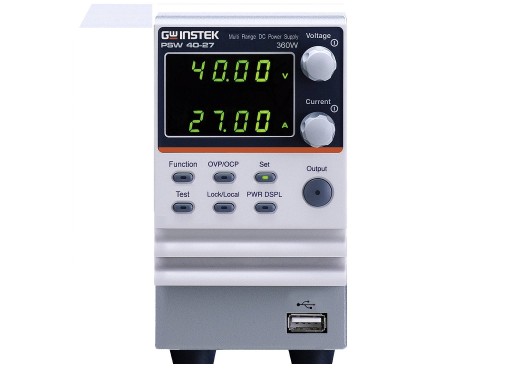

The GW Instek PSW 40-27 is a programmable lab power supply that is ideal for testing, for example, a Device Under Test (DUT). The lab power supply has Constant Voltage- (CV) and Constant Current- (CC) modes, which are useful for the protection of DUT’s particularly in the battery and LED industry.The power supply has active cooling and an analog control, with an adjustable slew rate. Another useful feature of the PSW series is that it is capable of series operation (2 units) or parallel operation (up to 3 units), to increase the voltage or current respectively.
The Over Voltage and Over Current Protections have adjustable levels, making them very suitable for the protection of DUT’s.
Model overview
The PSW 40 power supply series differ in total power, current range, resolution, ripple, dimensions and weight.
Model PSW 40-27 PSW 40-54 PSW 40-81 Total power 360 W 720 W 1080 W Current range 27 A 54 A 81 A Resolution 1 mV / 1 mA 1 mV / 2 mA 1 mV / 3 mA Ripple 7 mV / 54 mA 11 mV / 108 mA 14 mV / 162 mA Dimensions 71 x 124 x 350 mm 142 x 124 x 350 mm 214 x 124 x 350 mm Weight 3 kg 5.3 kg 7.5 kg Price 1277 €1,277.00 Excl. VAT 1558 €1,558.00 Excl. VAT 2037 €2,037.00 Excl. VAT Specifications Outputs 1 Output switch Only ON or OFF Voltage range 0 — 40 V Protection OVP, OCP, OTP, AC-Fail, Power limit Interfaces USB, LAN, GPIB (optional) Display 4 digit LED Accessories
The GW Instek PSW 40-27 includes:
- PSW-004 basic accessory kit: 2x M4 terminal screws and washers,2x M8 terminal bolts, nuts & washers, 1x Air filter, 1x Analog control protection dummy, 1x Analog control lock level
- GTL-123 test leads, 1x red, 1x black
- GTL-240 USB cable
- Power cord
