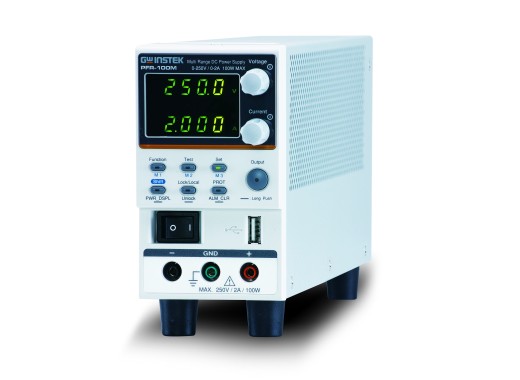

The GW Instek PFR-100M is an industrial high-quality power supply rated for 100W, with maximal output of 250V/2A (not simultaneously). The power supply has a fanless design, making it very silent and therefore suitable for industrial purposes. The PFR-100M can operate in two ranges: 250V/0.4A or 50V/2A, and has a resolution of 10mV/0.1mA. Connections to the power supply can either be made with the front terminals for easy test lead replacement, or with the rear terminals, which is more suitable for rack mount assembly operation.
The PFR-100M has several interface possibilities, such as USB, RS232/ RS-485, and analog control, to obtain full remote control over the power supply. Additional features such as an output on/ off delay function, an adjustable slew rate, remote sensing function and the possibility for web server monitoring and control enhance the capabilities of the GW Instek PFR-100M, making it especially suitable for industrial applications.
Model overview
GW Instek offers two models in the PFR-100 series, which differ in maximal voltage and current, and thus their resolution.
ModelPFR-100L PFR-100M Max. output Range 1: 50 V/ 2 A Range 2: 10 V/ 10 A Range 1: 250 V/ 0.4 A Range 2: 50 V/ 2 A Resolution 2 mV/ 1 mA 10 mV/ 0.1 mA Price 859.5 €859.50 Excl. VAT 859.5 €859.50 Excl. VAT Specifications Total power100 W Outputs1 Output switchYes Ripple15 mV / 2 mA ProtectionOPP, OCP, OVP, OTP, UVL InterfacesUSB, RS232/ RS-485, analog control Display4 digits resolution Eleshop noise production rating Dimensions300 x 124 x 70 mm Weight2.5 kg Accessories
The GW Instek PFR-100M is supplied including:
- Power cord
- GTL-134 test lead (eye terminal)
- GTL-104A test lead (banana plug)
- Accessory packages
