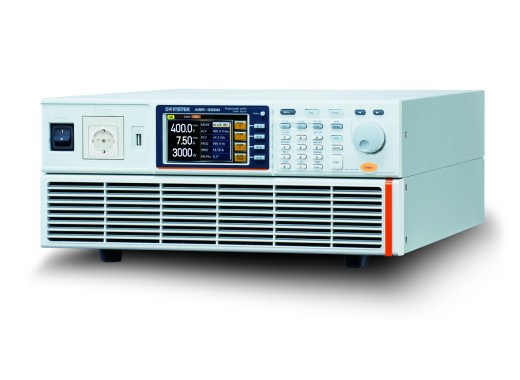

The GW Instek ASR-3300 programmable AC/DC lab power supply is highly suitable for developing and testing onboard chargers, server powers, LED modules, AC motors, AC fans, automotive equipment and household appliances.
Model overview
The ASR-3xxx power supply series differ in total power, current output capacity and output frequency.
Model ASR-3200 ASR3300 ASR-3400 ASR-3400HF Total power 2.000 W 3.000 W 4.000 W 4.000 W Max output current (Low/High) 20 / 10 A 30 / 15 A 40 / 20 A 40 / 20 A Output frequency (AC mode) 40 — 999.9 Hz 40 — 999.9 Hz 40 — 999.9 Hz 40 — 5000 Hz strong>                       (AC + DC mode) 1.0 — 999.9 Hz 1.0 — 999.9 Hz 1.0 — 999.9 Hz 1.0 — 5000 Hz Price 5990.91 €5,990.91 Excl. VAT 7752.89 €7,752.89 Excl. VAT 9162.81 €9,162.81 Excl. VAT 10286 €10,286.00 Excl. VAT Specifications Ripple1 Vrms (5Hz -1 MHz DC mode) Measuring possibilities Vrms, Vavg, Vpeak, Irms, Iavg, Ipeak, IpkH, P, S, Q, PF, CF, 100th-order Voltage Harmonic and Current Harmonic. Protection UVP, OCP, OPP, OTP, Fan Fail detection Interfaces USB, LAN, RS-232, GPIB, Ext. I/O, Ext. signal input Memory 16 slots, 4096 words Display 4.3′ LCD Dimensions 430 x 176 x 530 mm Weight 25 kg Accessories
The GW Instek ASR-3300 is supplied including:
- Safety guide
- Input terminal cover
- Output terminal cover
- GRA-442-E rack mount adapter
- GTL-246 USB cable
