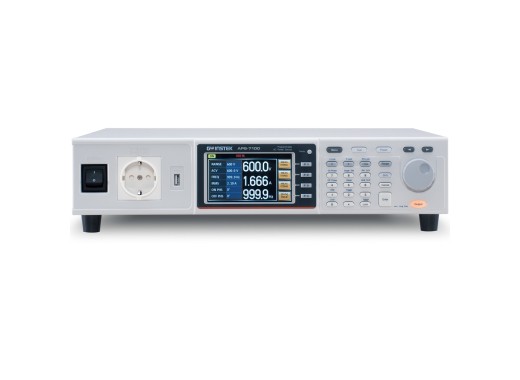

The GW Instek APS-7100E power supply belongs to the APS-7000 series and has a power of 1000VA. The power supply has a maximum output current of 8.4A and has a USB (Host) connection.
The APS-7000 series by GW Instek is a series of programmable AC power supplies, with many functions for testing and analyzing power supplies, electronic devices, components, and modules. The APS-7000 series is fully programmable. All parameters, values and measurement results are displayed simultaneously on the 4.3-inch TFT-LCD display.
The APS-7000 series has nine measurement functions (Vrms, Irms, F, Ipk, W, VA, PF, Ipk hold, CF) and can simulate multiple inputs. For example, a power failure can be simulated, which makes it easy to test how a connected circuit can handle it. In addition, several other scenarios can be programmed. The power supplies are not only able to generate sinusoidal AC, but also 50 other signals such as saw teeth and clipped signals.
Model overview
The main differences between the models of the APS-7000 series are shown in the table below.
Model APS-7050 APS-7050E APS-7100 APS-7100E Power 500 VA 500 VA 1000 VA 1000 VA Output current (max) 4.2 A 4.2 A 8.4 A 8.4 A Output current (peak) 16.8 A 16.8 A 33.6 A 33.6 A Connectivity USB (Host), LAN USB (Host) USB (Host), LAN USB (Host) Dimensions 430 x 88 x 400 mm 430 x 88 x 400 mm 430 x 88 x 560 mm 430 x 88 x 560 mm Weight 24 kg 24 kg 38 kg 38 kg Price 2530 €2,530.00 Excl. VAT 1935 €1,935.00 Excl. VAT 3360 €3,360.00 Excl. VAT 2890 €2,890.00 Excl. VAT Specifications Output voltage 0 ~ 310 Vrms Frequency 45.0 ~ 500.0 Hz Total harmonic distoration <, 0.5% Crest factor 4 Display 4.3′ LCD Accessories
The APS-7100E power supply comes with the following accessories:
- Power cord
- Test lead
- Manual
