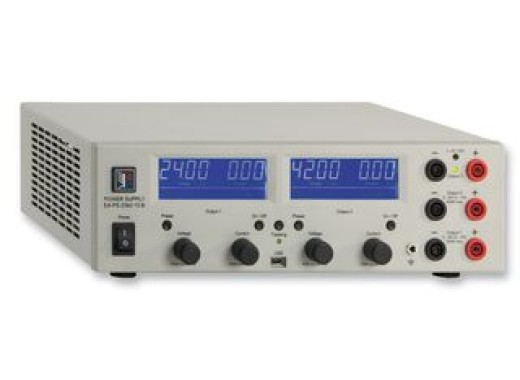

The Elektro Automatik PS 2342-06B lab power supply has three output channels, two of which output up to 42V and 6A and one output up to 6V and 4A. This unit is completely silent due to the lack of a fan. Furthermore, this power supply has a power factor circuit. The EA-PS 2342-06B also has a tracking function, giving simultaneous control over both main outputs. Furthermore, this power supply has an adjustable overvoltage protection, i.e. voltage protection, which causes the system to shut down when the output voltage exceeds the set value.
The EA PS 2342-06B has a limited number of software functions. For example, with the optional software it is possible to use the USB port, allowing the device to be controlled by a computer. The optional software (EA EasyPS2000 software kit) is also offered by Eleshop.
Specifications per output Output 1Output 2Output 3 Output voltage DC 0-42 V 0-42 V 3-6 V Output current 0-6 A 0-6 A 0-4 A Maximum power 100 W 100 W 12 W Ripple 80 mVrms 80 mVrms 80 mVrms General specifications Delivered software Device information, Update device firmware Optional software Computer controllable, Storage of data in CSV, Loading profiles, Graphical display of output values. Safety standard EN60950 Dimensions 282 mm x 241 mm x 82 mm Weight 3.8 kg
For more information you can consult the datasheet.
