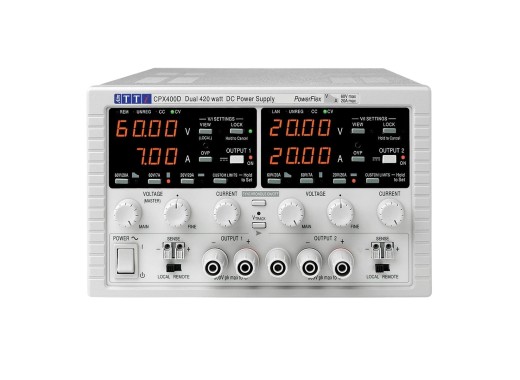

The Aim-TTi CPX400D is a dual-output bench power supply with a total power of 840W (420W per channel), a voltage range of 0-60V and a current range of 0-20A. This power supply offers variable voltage and current combinations within a maximum power envelope. Moreover, the outputs can be wired in series or parallel to achieve a voltage of up to 120V or a current of up to 40A. Features of the CPX400D include constant voltage or constant current operation, low output noise, good transient response and independent outputs or isolated voltage tracking.
Model overview Model CPX200D CPX200DP CPX400D CPX400DP Outputs 2 2 2 2 Total power 360 W 360 W 840 W 840 W Voltage range 0 — 60 V 0 — 60 V 0 — 60 V 0 — 60 V Current range 0 — 10 A 0 — 10 A 0 — 20 A 0 — 20 A Interfaces None RS-232, USB, LAN (LXI), GPIB,
duplicate rear output terminal None RS-232, USB, LAN (LXI), GPIB,
duplicate rear output terminal Price 880 €880.00 Excl. VAT 1152.89 €1,152.89 Excl. VAT 1230 €1,230.00 Excl. VAT 1470 €1,470.00 Excl. VAT Specifications ResolutionCH1: 1mV/1mA
CH2: 1mV/1mA RippleTypically ProtectionOCP, OVP, OTP Dimensions210 x 130 x 377 mm Weight6.3 kg Accessories
The CPX400D comes by default with:
- Power cable
