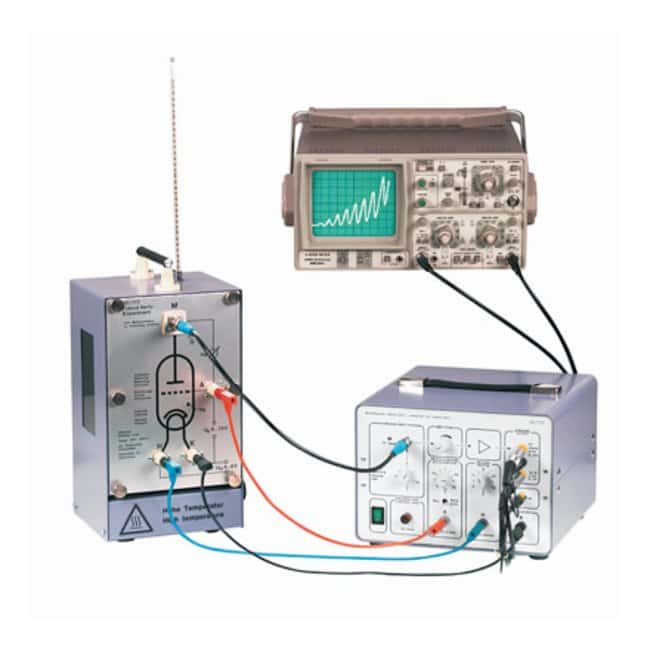

Description
- Provides all the voltage needed to power the tube
- Includes a sensitive built-in DC amplifier for measuring collector current
- Accelerating voltage can be either adjusted manually or derived from the supply unit as a continuously varying voltage
- Additional measuring inputs are also available for the anode current and accelerating voltage
Specification:
- Filament voltage: 4 to 12V, continuously adjustable
- Control voltage: 9V/10mA
- Accelerating voltage: 0 to 80V
- Modes of operation: manually adjusted, continuously varied
- Countervoltage: 1.2 to 10V, continuously adjustable
- Output A for collector current I: I = UA ™ 7nA/V (0 to 12V)
- Output B for accelerating voltage U: U = UB ™ 10
- Outputs: 4mm safety sockets
- Input: BNC socket
Order Info
Dimensions: ∽160 x 132 x 210mm3, Weight: ∽2.4kg
Технические характеристики
| For Use With (Application) | Franck hertz experiment |
| Electrical Requirements | 115 V 50/60 Hz |
| Frequency | 50/60 Hz |
