Description

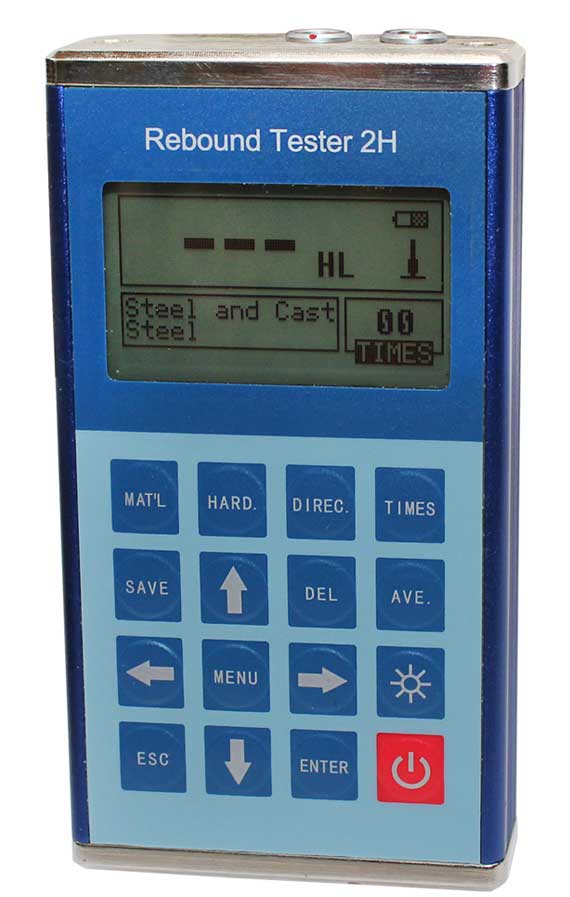

The Berg Portable Rebound Hardness Tester is a Leeb type portable hardness tester which is equipped to handle most metal portable hardness testing applications. The RT-2H is ideal for in-field work in the harshest environments. Designed with the user in mind, the RT-2H features a rugged aluminum body and a backlit LCD display. The system can automatically identify the type of impact device, which do not require recalibration when changing. The Portable Rebound Hardness Tester RT-2H meets ASTM-A956, DIN 50156, and ASME CRTD-91 standards.
Application Ranges
- Large test pieces which cannot be measured with floor or bench type hardness testers
- Testing all metal parts with a minimum wall thickness or inspection area of 1”
- Test pieces with non parallel sides
- Curved parts
- Clients whom need the ability to travel with equipment
- Testing installed parts
Технические характеристики
Specs
| Model | RT-2H |
| Hardness Scales | HV, HB,HRC, HRB, HRA, HS |
| Measuring Range | HLD(170~960) HLD |
| Measuring Direction | 360 |
| Communication Interface | RS232 |
| Working Voltage | 2*1.5V |
| Relative Humidity | &le, 90% |
| Ambient Temperature | -10℃～40℃ |
| Display | 128 x 64 LCD |
| Data Memory | 48~600 groups impact times: 32~1 |
| Continuous Working Period | approx. 100h (without backlight) |
| Power Requirements | 2 AA Alkaline Batteries |
| Dimensions | 132 x 82 x 33 mm |
| Weight | approx. 0.6 kg |
