Description

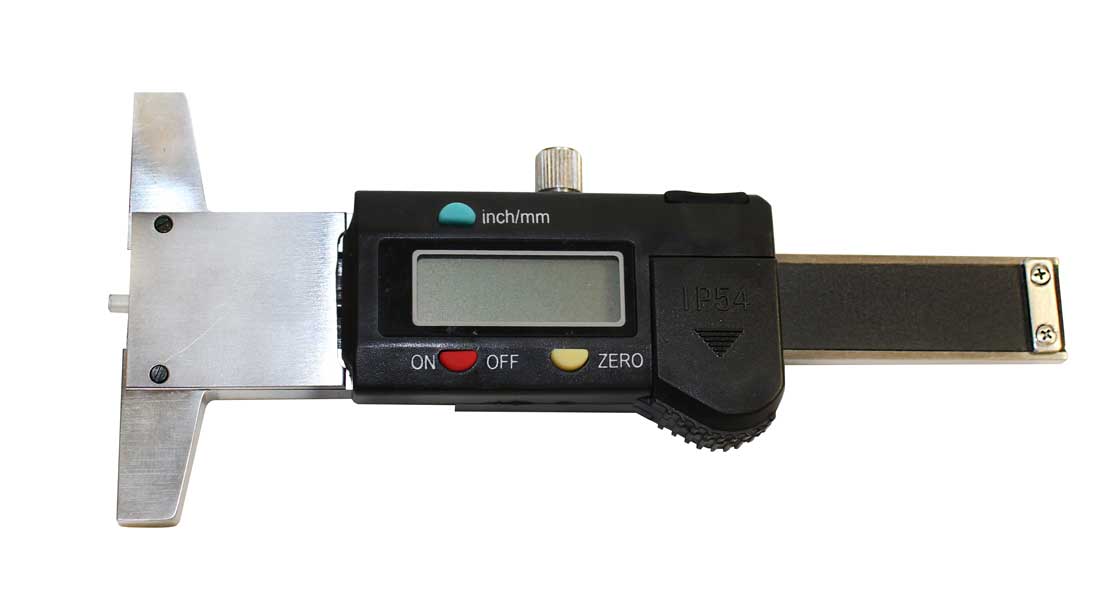

The Berg Digital Pit Gauge with IP54, designed based on digital vernier caliper with direct reading, is easy to use and provides fast and accurate measurements of surface pits, gauges, dents, undercuts, etc.
The Berg Digital Pit Gauge is made of hardened stainless steel, and its 0.2′ (0.5mm) probe diameter will access even the smallest pits. A data output interface makes it possible to connect with a PC or data logger for collecting and analyzing measurements.
BE-DGP-2 is equipped with a IP54 protective module for protection from water-spray, dusts and oil.
Технические характеристики
Specs
| Model Code | BE-DPG-2 |
| Protection Level | IP54 |
| Resolution (mm/in.) | 0.01/0.0004 |
| Range (mm/in) | 30/1.25 |
| Permissible Error (mm/in.) | ±,0.03/±,0.001 |
| Probe Diameter (mm) | 0.5/0.2 |
| MM/IN. Conversion | YES |
| ON/OFF Function | YES |
| ‘0’ Setting at any position | YES |
| Data Output | Available |
| Measuring Speed | &le,1.5m/sec |
| Working Temperature | 0~40C |
| Relative Humidity | &le,80% |
| Storage Temperature | -10~+60C |
| Accessories | Button Battery 1.55V |
