Description

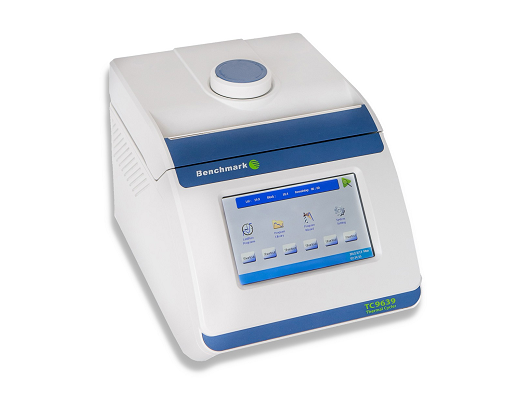

Benchmark»s TC9639 Thermal Cycler provides consistent, reliable results for laboratories with medium to high throughput. From its large, touch-screen user interface to its unique, multi-format block, this cycler is loaded with features. A large, full color touch screen serves as the operations center where all functions are accessed. The fully adjustable heated lid prevents condensation and evaporation of samples. Lid temperature can be programmed, and when the block temperature is below 35°, the lid automatically shuts off. Heating and cooling of the block are precisely and accurately controlled within exceptionally tight tolerances by a proprietary algorithm that simulates sample temperature. With the multi-format block, there is no need for the expense of multiple interchangeable blocks.
Specifications:
- Capacity:
- 96 Well Block – 96 x 0.2ml tubes / strips or 1 PCR plate or 39 x 0.5ml
- 384 Well Block – 1 x 384 well plate
- In-Situ Adapter: 4 slides (for use with 9639 block)
- Temp Control Range: 0° to 100°C
- Temp Control: Simulated sample or block
- Accuracy/Uniformity: ± 0.2°C / ± 0.2°C
- Ramp Rate: 4°C / Sec. (maximum)
- Lid Temp: 30°C to 112°C, user adjustable
- Program Memory: Unlimited with flash drive
- Increments/Decrements: Yes, both time and temperature
- Power Supply: Universal, 75 to 275V, 50 to 60Hz
- Communication: USB, LAN and RS232
- Dimensions: 10.2 x 14.2 x 9.9 in. / 26 x 36 x 25cm
- Weight: 16 lbs. / 7.3kg
