Description

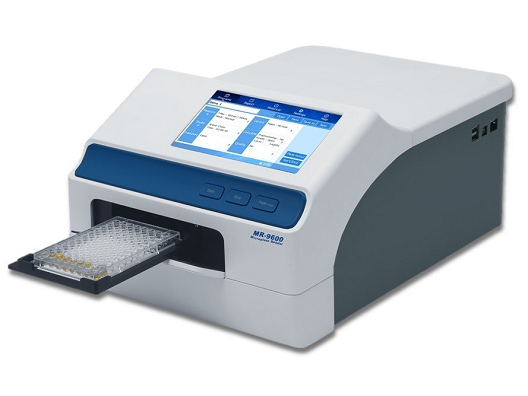

The SmartReader 96 comes complete with 4 popular filters: 405,450,492,630nm and twenty six additional filters are available separately to cover a full range from 340 to 750nm. The integrated filter wheel allows up to 8 filters to be loaded at once, and filters can be selected during programming. Up to two filters can be used for 2 measurements of the sample plate, for calculated comparisons. Kinetic calculations can be performed by setting multiple readings. The SmartReader 96 is a convenient stand alone reader, all software and the programing system is incorporated into the electronics. However, a convenient USB port on the side allows quick and easy saving of data files to a USB drive, and the universal .csv files can then be shared or transferred to a computer for storage or further processing. A data port can be used for connecting a computer or basic printer.
Specification:
- Control and Display: 7 inch touch screen (800 x 480 pixels)
- Light Source: Quartz-halogen lamp 6V/10W
- Wavelength Range: 340-750nm (405, 450, 492 and 630 nm filters included)
- Half-Bandwidth of filter: 3~9nm
- Readout Range: 0~4.000 Abs
- Linearity (405nm): 0~2.000 Abs <,+1% / 0~4.000 Abs <,+2%
- Precision: CV<,/= 0.2% (0-3) Abs , CV<,/= 01.0% (3-4) Abs
- Test Speed: <,6 sec. for 96 well plate
- Shaking: 3 modes – slow, medium, fast
- User Interface: Integrated software and touch screen control
- Storage: 200 programs, 100,000 test records
- Ports: USB ports for PC, printer, mouse and flash drive
- Dimensions: 295x440x225 mm (11.6 x 17 x 8.75 inches)
- Weight: 10 kg
