Description
Description:

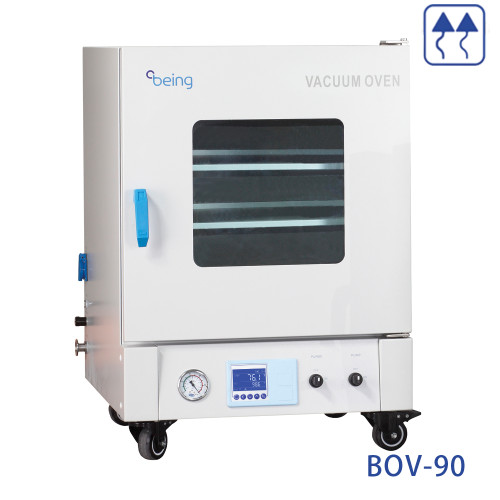

The BEING Vacuum Ovens over a variety of sizes to fit the different needs of each of our customers. Due to our excellent design, the BEING vacuum oven offers more usable space then similarly sized ovens from the competition. A large viewing window allows the user to quickly view their samples from a distance. The BEING controller offers superior temperature control and safety for our customers with a large colored LCD display for easy viewing.
Features:
- Colorful LCD display.
- Real-time display of measured vacuum helps user monitor progress of the drying sample
- Inert Gas Inlet
- Interior Chamber made from 304 stainless steel with a mirror polished finish making for easy cleaning
- Adjustable shelves for added flexibility to accommodate various size containers
- Exhaust valve switching and pump switch come with an electromagnetic valve controller which is safe and reliable.
- User friendly and reliable operation while at the same time conserving vacuum pump power
- The BEING Controller provides programmability for 7 periods and 9 steps for each period making for a total of 63 programmable steps
Specifications:
- Chamber Volume: 0.9 cubic ft (24 L)
- Temperature Range: Ambient + 18°F ~ 392°F (Ambient + 10°C ~ 200°C)
- Temperature Resolution: 0.1
- Max degree of vacuum: 133 Pa
- Standard/Max Quantity of Shelves: 2/5
- Work chamber material: stainless steel
- Interior Dimension (W x H x D): 11.8 x 10.8 x 11.8” (300 x 275 x 300 mm)
- Exterior Dimension (W x H x D): 17.5 x 23.2 x 19.9” (445 x 590 x 505 mm)
- Max. load per shelf: 20 kg
- Net Weight: 60 kg
- Inert gas air inlet: has
- Electrical Requirement: 120 V, 60 Hz
- Power Consumption: 700 W
