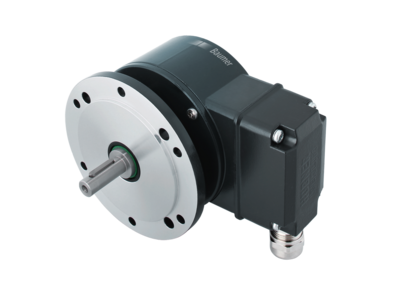

The POG 10 incremental encoders are designed for harsh environments. They feature a solid shaft with EURO B10 flange and are highly resistant to shock and vibration. These encoders provide precise measurement of angular position and rotational speed.
Datasheet:
- Supply voltage: 9…30 VDC, 5 VDC ±5%.
- No-load consumption: ≤100 mA
- Pulses per revolution: 300 … 5000
- Phase shift: 90° ±20°
- Duty cycle: 40…60%
- Reference signal: Zero pulse, 90° width
- Measurement method: Optical
- Output signal frequency: ≤120 kHz (≤300 kHz on request)
- Output signals: K1, K2, K0 + inverted
- Output stages: HTL-P (power driver), TTL/RS422
- Interference resistance: EN 61000-6-2
- Radiated interference: EN 61000-6-3
- Flange size: ø115 mm
- Shaft type: ø11 mm solid shaft
- Permissible load on the shaft: ≤300 N axial, ≤450 N radial
- Protection: EN 60529 IP 66
- Rotation speed: ≤12000 rpm (mechanical)
- Housing material: Die-cast aluminum
- Shaft material: Stainless steel
- Temperature range: -40…+100 °C (optionally down to -50 °C)
- Vibration resistance: 20 g, 10-2000 Hz (IEC 60068-2-6)
- Impact resistance: 200 g, 6 ms (IEC 60068-2-27)
- Corrosion protection: C4 (ISO 12944-2)
- Explosion protection: II 3 G Ex ec IIC T4 Gc (gas), II 3 D Ex tc IIIC T135°C Dc (dust) (optional ATEX)
- Connection: Terminal box
- Weight: approx. 1.9 kg (2.1 kg with M option)
| POG10 DN 1 I B3 NIRO 10m HEK8 | 11175098 |
| POG10 DN 10 I B3/B10 | 11191711 |
| POG10 DN 100 I | 11104263 |
| POG10 DN 1000 I + ESL93 | 11077168 |
| POG10 DN 1000 I B3 | 11078603 |
| POG10 DN 1000 I B3/B10 | 11090470 |
| POG10 DN 1000 I B3/B10 mit Heizung | 11156511 |
| POG10 DN 1000 I mit Heizung | 11082094 |
| POG10 DN 1000 R | 11087851 |
| POG10 DN 1000 R + ESL93 | 11081545 |
| POG10 DN 1000 TTL | 11087839 |
| POG10 DN 1000 TTL mit Heizung | 11091724 |
| POG10 DN 1024 I + AMG 10 S 512 R | 11091765 |
| POG10 DN 1024 R 11×30/10×15 | 11150268 |
| POG10 DN 1024 R 11×30/10×15+Anbausatz | 11150269 |
| POG10 DN 1024 R B3/B10/B14 | 11081872 |
| POG10 DN 1024 TTL | 11075547 |
| POG10 DN 1024 TTL mit Heizung | 11136811 |
| POG10 DN 120 I + ESL93 | 11202613 |
| POG10 DN 1200 I 11×30/10×15 | 11171183 |
| POG10 DN 1200 I B3/B10 | 11102778 |
| POG10 DN 1200 I B3/B10/B14 | 11166156 |
| POG10 DN 1200 I B5n 14k6x30 | 11154339 |
| POG10 DN 1200 TTL B3 | 11128225 |
| POG10 DN 128 I | 11111603 |
| POG10 DN 128 I B3 | 11115525 |
| POG10 DN 150 I | 11137016 |
| POG10 DN 180 TTL | 11092177 |
| POG10 DN 200 I | 11124836 |
| POG10 DN 2048 I | 11146537 |
| POG10 DN 2048 I + ESL93 B3 | 11102132 |
| POG10 DN 2048 I + DSL.E | 11176336 |
| POG10 DN 2048 I + DSL.R | 11196608 |
| POG10 DN 2048 I + ESL 90 | 11171348 |
| POG10 DN 2048 I 11×30/10×15 | 11191922 |
| POG10 DN 2048 I B3 | 11169461 |
| POG10 DN 2048 I B3/B10 + DSL.R | 11196620 |
| POG10 DN 2048 I B5 12k6x20 | 11085011 |
| POG10 DN 2048 I B5S | 11121018 |
| POG10 DN 2048 R B3 | 11183264 |
| POG10 DN 2048 TTL | 11146533 |
| POG10 DN 25 I | 11116895 |
| POG10 DN 25 I Niro KLK-Niro | 11106453 |
| POG10 DN 250 I | 11105715 |
| POG10 DN 2500 I | 11152727 |
| POG10 DN 2500 I + DSL.E | 11172240 |
| POG10 DN 2500 I + DSL.R | 11174949 |
| POG10 DN 2500 I 11×30/10×15 | 11165591 |
| POG10 DN 2500 I 11×30/10×15+Anbausatz | 11086855 |
| POG10 DN 2500 TTL | 11182407 |
| POG10 DN 30 I | 11128742 |
| POG10 DN 300 I | 11155429 |
| POG10 DN 360 I | 11082115 |
| POG10 DN 40 I 11×30/10×15 | 11165853 |
| POG10 DN 4096 I | 11163442 |
| POG10 DN 50 I 11×30/10×15 | 11104460 |
| POG10 DN 50 R B3 | 11087138 |
| POG10 DN 500 I + ESL93 | 11138958 |
| POG10 DN 500 I 11×30/10×15 | 11082992 |
| POG10 DN 500 I B3 | 11129437 |
| POG10 DN 500 I B3/B10 + POG10 DN 1024 I | 11233839 |
| POG10 DN 500 I B3/B10/B14 | 11207713 |
| POG10 DN 500 TTL | 11113490 |
| POG10 DN 5000 I | 11145785 |
| POG10 DN 5000 R | 11141862 |
| POG10 DN 512 I | 11079765 |
| POG10 DN 512 I + DSL.R | 11165999 |
| POG10 DN 512 I 11×30/10×15 | 11111346 |
| POG10 DN 512 I B3 | 11153448 |
| POG10 DN 512 R + DSL.R | 11124566 |
| POG10 DN 60 R | 11101191 |
| POG10 DN 600 I | 11147256 |
| POG10 DN 600 I B3/B10 | 11145580 |
| POG10 DN 64 I B3 | 11127344 |
| POG10 DN 720 I B3 | 11200127 |
| POG10 DN 800 I + ESL93 | 11141472 |
| POG10 DN 900 TTL | 11160605 |
| POG10 ET DN 1024 I | 11092284 |
| POG10 ETL DN 1024 I | 11123911 |
| POG10.2 DN 1000 I | 11138800 |
| POG10.2 DN 1024 I | 11071384 |
| POG10.2 DN 1024 I B3/B10 | 11147141 |
| POG10.2 DN 1024 R | 11207953 |
| POG10.2M DN 1024 I | 11083590 |
| POG10.2M DN 1024 I + ESL93 | 11202961 |
| POG10+DSL KLK-Deckel M20x1,5 vollst. | 11154629 |
| POG10DN500 I B3/B10+POG10DN1024 I+DSL.E | 11207714 |
