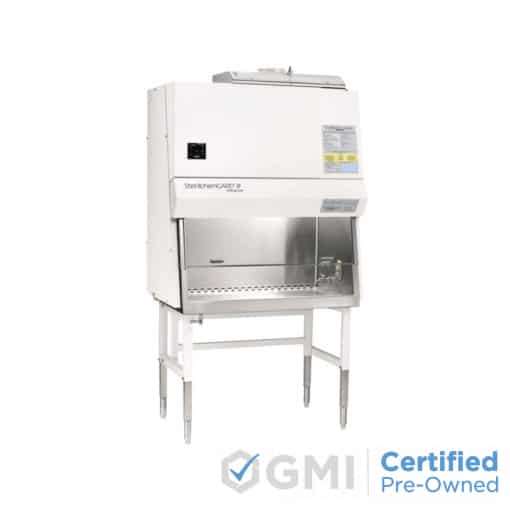

Product Description Vertical laminar flow Supply and exhaust HEPA filters Baker momentum air curtain All GMI Re-Certified BSCs will pass Certification -guaranteed UniPressure Preflow plenum SG403 4 foot model SG603 6 foot model Ask us about our New Biological Safety Cabinets The Baker Company SterilGARD III Advance is a Class II Type A/B3 biological safety cabinet designed with vertical laminar airflow and front access opening. Integrated with HEPA filters, the cabinet keeps the environment, the user and the product safe from airborne contaminants. The SterilGARD III Advance is available in the 4-ft. SG403 and 6-ft. SG603 models. The SterilGARD III Advance cabinet is equipped with The Baker Companys momentum air curtain, creating a faster airflow for an extremely effective air barrier. The biosafety cabinet is also equipped with high velocity air slots to maximize the cabinets protective capability, and an airfoil design at the bottom of the sash to maximize containment without compromising comfort. Built for durability, the SterilGARD III UniPressure Preflow plenums have been constructed entirely of metal for strength, air-tightness and resistance to deterioration. Additionally, the work surface is made of corrosion-resistant 16-gauge type 304 stainless steel, and are recessed to retain spills. The radiused cove corners make for easy cleaning. For convenience and easier operation, the scan-tested supply and exhaust HEPA filters are installed and removed through the front of the cabinet without entry into SterilGARDs work area. The SterilGARD III Advance Biological Safety Cabinet is also manufactured with ergonomics in mind. The work area lighting system produces 100-foot candles of illumination at the surface, and access to it is made easy with the sliding view screen. The 10-degree sloped front feature also improves operator comfort and safety. Specifications Model SG403 Model SG603 Weight 525 lbs 700 lbs Weight with Optional Stand 625 lbs 810 lbs Electrical Specifications 115V AC, 1 Phase, 60 Hz Blower Motor (1,625 RPM) 6.6 amps 9.9 amps Fluorescent Light (ballast) 0.8 amps 0.8 amps Duplex Outlets (G.F.I.) 5.0 amps 4.0 amps Total Running Load 12.4 amps 14.7 amps Environmental Conditions Indoor use Altitudes up to 2000 meters Temperature range from 5 C to 40 C Relative humidity up to 80% Main supply voltage fluctuations not to exceed ±,10% of the nominal voltage
Технические характеристики
Specifications
| Model SG403 | Model SG603 | |
| Weight | 525 lbs | 700 lbs |
| Weight with Optional Stand | 625 lbs | 810 lbs |
| Electrical Specifications | 115V AC, 1 Phase, 60 Hz | |
| Blower Motor (1,625 RPM) | 6.6 amps | 9.9 amps |
| Fluorescent Light (ballast) | 0.8 amps | 0.8 amps |
| Duplex Outlets (G.F.I.) | 5.0 amps | 4.0 amps |
| Total Running Load | 12.4 amps | 14.7 amps |
| Environmental Conditions | Indoor use | |
| Altitudes up to 2000 meters | ||
| Temperature range from 5° C to 40° C | ||
| Relative humidity up to 80% | ||
| Main supply voltage fluctuations not to exceed ±10% of the nominal voltage |
