Product Information
Product Description
- HANDHELD AC MAGNETIC YOKE
- POWERFUL AC MAGNETIC FIELD
- UNITS ARE AVAILABLE IN 115 VAC
- SLIM LINE ERGONOMIC HANDLE
- OVERSIZED OPERATING SWITCH
- LIGHTWEIGHT
- DURABLE MOLDED CONSTRUCTION
- TOTALLY REPAIRABLE
- ONE-YEAR GUARANTEE
The Instrument that does so much, so well

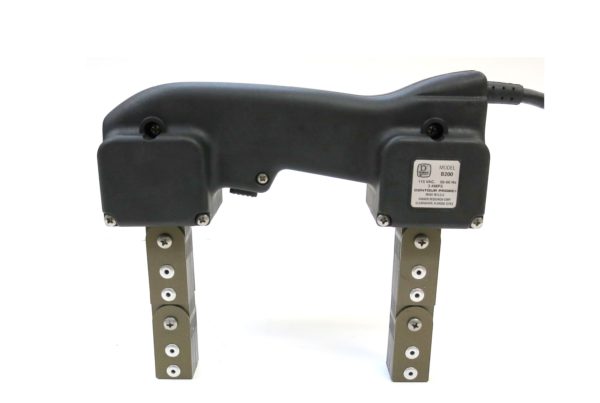

If you do any work with ferrous metals… in the shipyard, aerospace, steel mill, foundry, weldment or vehicle overhaul… you need the performance advantage of the B-200 Contour Probe.
Wide versatility & Precise Area Inspection
Mechanically, the B-200 Probe will conform to practically any surface configuration. Fully adjustable legs allow the strong AC field to be applied directly to the precise area to be inspected, regardless of part size or mass. Plus construction of the B-200 Contour Probe allows for the replacement of all internal components
One-Person Package
The B-200 Contour Probe is a complete magnetic package. One person takes it to work and easily performs a thorough and reliable inspection in a fraction of the time consumed by large bulky equipment. All the power and durability of the original B100, the B200 was designed with operator comfort in mind. Dual coils reduce outward heating and maintain a powerful AC field. A slim line ergonomic handle and oversized operating switch provides a comfortable grip, and is ideally suited for lengthy inspection applications.
MODEL POWER REQUIREMENTS FIELD WEIGHT B200 115 VAC
50-60 Hz
3 AMPS
AC 7 lbs.(3.18 kg)
