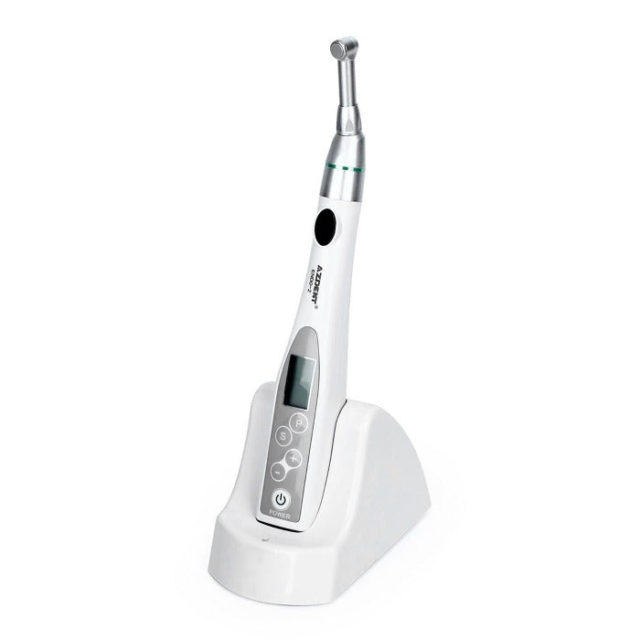

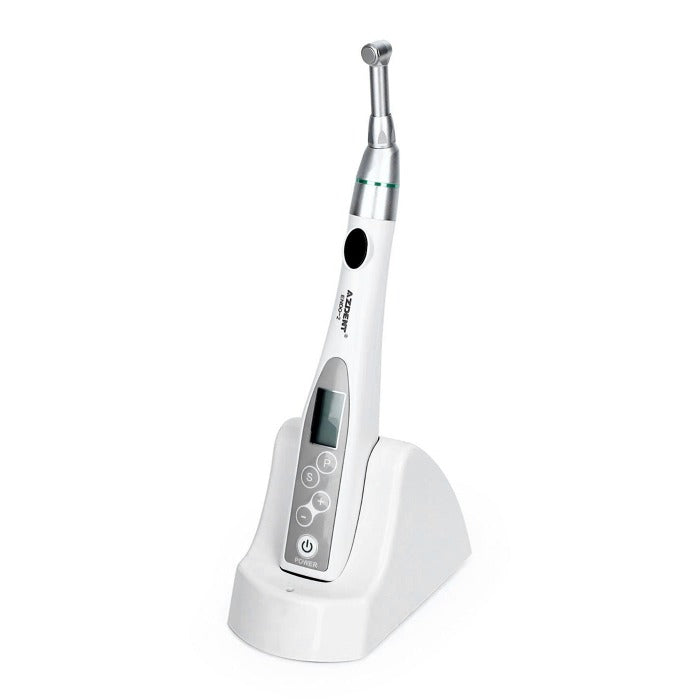

AZDENT Dental Mini Cordless Endo Motor Treatment ENDO-2 With 16:1 Contra Angle 9 Programs With Reciprocation Function, Auto-reverse Mode. With Reciprocation Mode.
- 9 program settings can be memorized
- Auto-reverse mode makes operation easier
- Cordless handpiece delivers freedom of movement
- Non-contact type charge design, more safe and reliable
- High capacity lithium-ion battery provides stable and prolonged usage
- With 16:1 electric contra angle(1:1/10:1/16:1/20:1)
- Offers quick and easy coupling
- Power off automatically
|
| Auto-Reverse mode instructions |
- Auto reverse (When resistance higher than torque, the equipment will auto-reverse. Auto-reverse again till the resistance lower than torque)
- Auto stop (When resistance higher than torque, the equipment will stop working)
- Auto reverse & stop (When resistance higher than torque, the equipment will auto-reverse.)
- And stop after resistance disappeared.
- Forward：Polishing Mode.
- Reverse：Taking the broken file Mode.
- Reciprocation：Forward 35°,Reverse 145°
|
| 1:1 | 2000 — 9000 | —- |
| 10:1 | 200 — 900 | 0.2 — 2.2 |
| 16:1 | 140 — 550 | 0.3 — 3.0 |
| 20:1 | 100-450 | 0.4 – 4.0 |
| Main Engine Voltage: | 3.7V |
| Battery Capacity: | 1050mAh |
Charger Input Voltage:
| AC110-220V,50-60Hz |
Charger Onput Voltage:
| 5V |
Output Current:
| 1000mA |
Технические характеристики
| 1:1 | 2000 — 9000 | —- |
| 10:1 | 200 — 900 | 0.2 — 2.2 |
| 16:1 | 140 — 550 | 0.3 — 3.0 |
| 20:1 | 100-450 | 0.4 – 4.0 |
