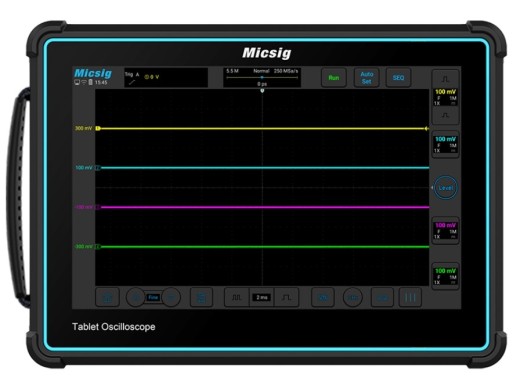

The Micsig ATO1004 is an oscilloscope from Micsig specially made for the automotive industry. This model comes with a 1GSa/s sample rate, a memory depth of 110Mpts and a bandwidth of 100MHz. With multiple interfaces like: WIFI, USB and HDMI, 4 channels and the 10.1′ touchscreen display you can test various of things. Includeded automotive tests are: Charging/Start Circuits, Actuators, Ignition and more. With the internal 32GB memory you can store waveforms and screenshots locally. It is also possible to show the waveforms on your phone or on a display.
Model overview
The ATOx004 series differs in bandwith, sample rate, and memory depth Model ATO1004 ATO2004 ATO3004 Bandwidth 100 MHz 200 MHz 300 MHz Sample rate 1 GSa/S (single channel) 2 GSa/S (single channel) 2 GSa/S (single channel) Memory depth 110 Mpts (single channel) 220 Mpts (single channel) 220 Mpts (single channel) Capture rate 78.000 wfm/s 300.000 wfm/s 300.000 wfm/s Price 785.12 €785.12 Excl. VAT 950.41 €950.41 Excl. VAT 1198.35 €1,198.35 Excl. VAT Specifications Channels4 Rise time≤3.5 ns Vertical scale1 mV/div — 10 V/div Horizontal scale2 ns/div — 1 ks/div Decoding typeUART, CAN, CAN FD, LIN, SPI, I²C Display10.1′ Touchscreen LCD, 1280 x 800 px. Internal storage32 GB InterfacesWi-Fi, USB 3.0/2.0 Host, USB type-C, Grounding, HDMI, Trigger out Battery7500 mAh (approx. 5 hours) Dimensions265 x 192 x 50 mm Weight1.9 kg (with battery) Accessories The ATOx004 series are shipped with the following:
- Power adapter
- Battery (built-in)
- 2x Passive BNC probes
- 4x BNC — banana cables
- 4x flexible needle
- 2x Pair of alligator clips
